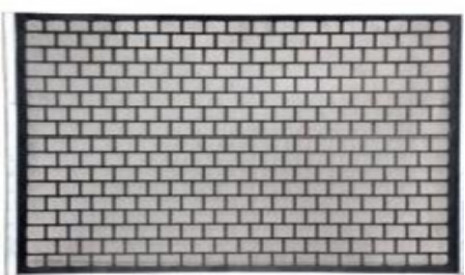

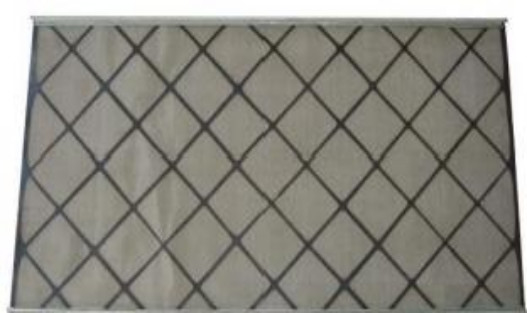

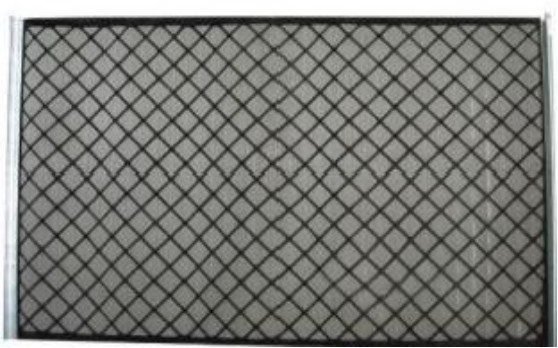

Hook Strip Soft Screen SWACO ALS-2 Oilfield Drilling Shaker Screen Mesh

Hook Strip Soft Screen SWACO ALS-2 Oilfield Drilling Shaker Screen Mesh
Hook Strip Soft Screen SWACO ALS-2 Oilfield Drilling Shaker Screen Mesh Hook Strip Soft Screen SWACO ALS-2 Oilfield Drilling Shaker Screen Mesh Hook Strip Soft Screen SWACO ALS-2 Oilfield Drilling Shaker Screen Mesh Hook Strip Soft Screen SWACO ALS-2 Oilfield Drilling Shaker Screen Mesh

Large Image :  Hook Strip Soft Screen SWACO ALS-2 Oilfield Drilling Shaker Screen Mesh

Product Details:
Place of Origin: China
Brand Name: FORUS
Certification: ISO
Model Number: SWACO ALS-2
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Packaging Details: Wooden Box
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 PCS Per Month
Contact Now

Hook Strip Soft Screen SWACO ALS-2 Oilfield Drilling Shaker Screen Mesh

Description
Product Name: Hook Strip Soft Screen Model: SWACO ALS-2
Dimension: 1212X1141mm Application: Oilfield Drilling
Highlight:

Hook Strip Soft Screen

,

SWACO ALS-2 drilling shale shaker

Hook Strip Soft Screen SWACO ALS-2 Oilfield Drilling SHaker Screen Mesh



Product Description

1.2 to 3 layers of stainless steel wire cloths bonding as a whole without metal foils.
2.Install in the shaker by the way of crisperding without metal branch cuttings fiber towel glue and with large effective area.
3.The wire diameter of the bottom layer of the screen mesh is relatively coarse,which plays the roles of screening and supporting with the upper layer and extends the life of the screen.
4.The soft screen,with low price,effective filtration area is bigger than flat screen,but its lift is comparatively short with that of flat screen.It needs to choose different screen,depending on the drilling conditions.


Product Data

Hook Strip Soft Screen

Screen Model



Range of Mesh



Dimension(W"L)



 Model of replaceable screen
HSF-1 20-325 700X1050mm FLC2000
HSF-2 20-325 1212X1141mm SWACOALS-2
HSF-3 10-80 915X925mm JSS(USA)
HENGYUN HSF-4 8-120 1514X1225mm NOV4X5
HSF-5 20-250 1000X1150mm NS-115/2
HSF-6 20-250 600X1040mm NCS-300X2




Mesh Size Parameters



D100 Separation size API ID
>1850.0 TO 2180.0 API10
>780.0 TO 925.0 API20
>462.5 TO 550.0 API35
>390.0 TO 462.5 API40
>275.0 TO 327.5 API50
>231.0 TO 275.0 API60
>196.0 TO 231.0 API70
>165.0 TO 196.0 API80
>137.5 TO 165.0 API 100
>116.5 TO 137.5 API 120
>98.0 TO 116.5 API 140
>82.5 TO 98.0 API 170
>69.0 TO 82.5 API 200
>58.0 TO 69.0 API 230
>49.0 TO 58.0 API 270
>41.5 TO 49.0 API 325
>35.0 TO 41.5 API 400



D100 Separation size ASTM Single screen mesh number
2000 μm ASTM 10Mesh
1000μm ASTM18 Mesh
850μm ASTM 20 Mesh
7 1 0 μm ASTM25 Mesh
600μm ASTM 30Mesh
500μm ASTM 35Mesh
425μm ASTM 40Mesh
3 5 5 μm ASTM 45Mesh
300μm ASTM 50Mesh
250μm ASTM 60Mesh
2 1 2μm ASTM 70Mesh
180μm ASTM 80 Mesh
1 5 0 μm ASTM100 Mesh
125μm ASTM 120 Mesh
1 0 6 μm ASTM140 Mesh
90μm ASTM170 Mesh
75μm ASTM200 Mesh
63μm ASTM 230 Mesh
53μm ASTM 270 Mesh
45μm ASTM 325 Mesh
38μm ASTM400 Mesh



API ID D100 Separation size(μm) API ID D100 Separation size(μm)
API 20 >780.0 TO 925.0 API 120 >116.5.TO 137.5
API 30 >550.0 TO 655.0 API 140 >137.5.TO 165.0
API 35 >462.0 TO 550.0 API 170 >137.5.TO 165.0
API 40 >390.0 TO 462..0 API 200 >137.5.TO 165.0
API 50 >275.0 TO 390.0 API 230 >137.5.TO 165.0
API 60 >213.0TO 275.0 API 370 >137.5.TO 165.0
API 70 >196.0 TO 213.0 API 325 >137.5.TO 165.0
API 80 >165.0TO 196.0 API 400 >137.5.TO 165.0
API 100 >137.5.TO 165.0
