High Filterability Screen PMD Wave Type Oilfield Drilling Shale Shaker Mesh

Large Image : High Filterability Screen PMD Wave Type Oilfield Drilling Shale Shaker Mesh

Product Details:

Place of Origin:	China
Brand Name:	FORUS
Certification:	API
Model Number:	FLC2000

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Packaging Details:	Wooden Box
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	5000 PCS Per Month

Contact Now

High Filterability Screen PMD Wave Type Oilfield Drilling Shale Shaker Mesh

Description

Product Name:

High Filterability Screen

Dimension:

697X1053mm

Model:

FLC2000

Application:

Oil Drilling

Highlight:

High Filterability Shaker Screen Mesh

PMD Wave Type Shaker Screen Mesh

Oilfield Drilling Shale Shaker Mesh

High Filterability Screen PMD Wave Type Oilfield Drilling Shaker Screen Mesh

High Filterability Screen Description

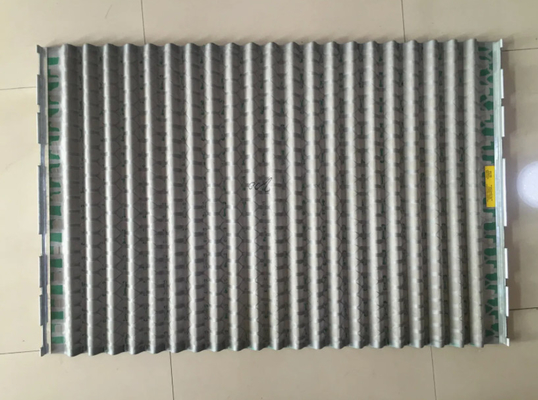

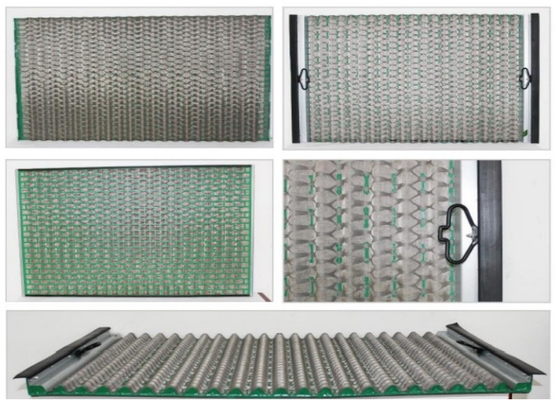

1.Wave Screen has large effective area,and drilling fluid is handle in high-efficiency by using it.
2.Each wire cloth in the sieving screen has different meshes,and accurate collocation can make the screen has better effect.
3.Stainless steel wire cloth is wave,and closely holds to metal support plank together.The effective area is up to 125%to 150%of the flat screen with the same specification,so as to improve of handling capacity.
Our factory can produce various specifications wave screen according to customer demand.

High Filterability Screen Data

High Filterability Screen
Screen Model	Range of Mesh	Dimension	Mode of replaceable screen
F-PMD-1	20-325	697X1053mm	FLC2000
F-PMD-2	20-325	695x1050mm	FLC500
F-PMD-3	20-325	710x626mm	FLC600
F-PMD-4	20-325	567x1070mm	D-HYP

Tag:

Contact Person: Liu

Tel: 18966717078

Fax: 86-029-81511323
