Product Details:
|
| Product Name: | Connecting Rod | Industry: | Oil Drilling |
|---|---|---|---|
| Condition: | New | Application: | Mud Pump |
| Part No.: | RS11309.02.006 | Weight: | 550KG |
| High Light: | API 7K Connecting Rod,F-1600 Connecting Rod,Mud Pump connecting bearing |
||

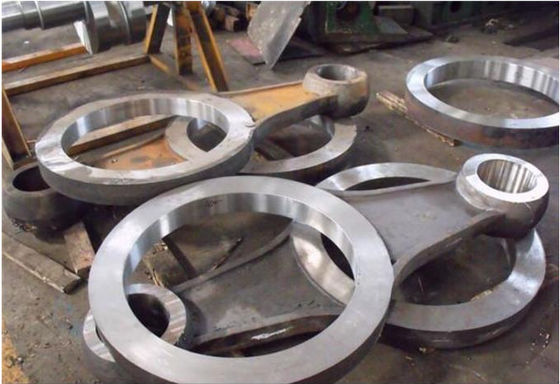

Mud Pump Parts Connecting Rod For RS F-1600 Mud Pump
Mud Pump Part List
| Item | Product Description | Brand | Part No. |
| 1 | MAIN BEARING | For RONG SHENG F-1600 Mud Pump | RS11309.02.018 |
| 2 | ECCENTRICITY WHEEL BEARING | For RONG SHENG F-1600 Mud Pump | RS11309.02.017 |
| 3 | CROSSHEAD BEARING | For RONG SHENG F-1600 Mud Pump | RS11309.04.015 |
| 4 | PINION (SMALL GEAR) SHAFT BEARING 4G32844H | For RONG SHENG F-1600 Mud Pump | RS11309.03.012 |
| 5 | CONNECTING ROD | For RONG SHENG F-1600 Mud Pump | RS 11309.02.006 |
| 6 | CROSS HEAD PIN | For RONG SHENG F-1600 Mud Pump | RS11309A.04.011 |
| 7 | OIL SEAL- PINION SHAFT, Dia 9.125″× 10.375″× 0.625″ |
For RONG SHENG F-1600 Mud Pump | RS 11309.03.011 |
| 8 | OIL SEAL- Double Lip for Pony Rod | For RONG SHENG F-1600 Mud Pump | RS 11309.04.007 |
| Item | Product Description | Brand | Part No. |
| 1 | Extension Rod (Intermediate rod) | For RONG SHENG F-1600 Mud Pump | RS11309.04.010 |
| 2 | HYD.Cylinder Cover(Valve port cover) | For RONG SHENG F-1600 Mud Pump | RS11309.05.003 |
| 3 | Liner Lock(LINER PRESS COVER) | For RONG SHENG F-1600 Mud Pump | RS11309.05.016 |
| 4 | Lock spring | For RONG SHENG F-1600 Mud Pump | RS11309.04.008 |
| 5 | Mud guard | For RONG SHENG F-1600 Mud Pump | RS11309.04.009 |
| 6 | Shell assy for pulsation dampener | For RONG SHENG F-1600 Mud Pump | RS11306.19.002.001 |
| 7 | Cover for pulsation dampener | For RONG SHENG F-1600 Mud Pump | RS11306.19.003 |
| 8 | Botom plug for pulsation dampener | For RONG SHENG F-1600 Mud Pump | RS11309.03.011 |
| 9 | Gear pump type:CB-B40(0.63mpa,40 L/min,1450 rpm) | For RONG SHENG F-1600 Mud Pump | |
| 10 | Electric spray pump assembly(Type:Centrifugal,model:HSCP-DN32-2,head:10m,Speed;1440 rpm, Ex. Proof EI,Motor power:2.2kw,380V) | For RONG SHENG F-1600 Mud Pump | |
| 11 | Hydraulic valve seat puller | For RONG SHENG F-1600 Mud Pump | |
| 12 | Valve assy(valve body+insert valve) | For RONG SHENG F-1600 Mud Pump | |
| 13 | Dual hardness urethane HPHT bonded piston 7" | For RONG SHENG F-1600 Mud Pump | |
| 14 | Dual hardness urethane HPHT piston rubber 7" | For RONG SHENG F-1600 Mud Pump | |
| 15 | Snap ring for 7" replaceable piston | For RONG SHENG F-1600 Mud Pump | |
| 16 | Retainer plate for 7" replaceal | For RONG SHENG F-1600 Mud Pump | |
| 17 | Ceramic liner 7" | For RONG SHENG F-1600 Mud Pump |
Supply Mud Pump Parts Brand
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
