Product Details:
|
| Product Name: | Gear Shaft | Model: | FB-1600 |
|---|---|---|---|
| Material: | 42CrMo/Customized | Test Certification: | Provide |
| Industry: | Oil Drilling | Warrantytolerance: | 1 Year |
| High Light: | 42CrMo gear shaft,EMSCO gear shaft,FB-1600 gear box shaft |
||

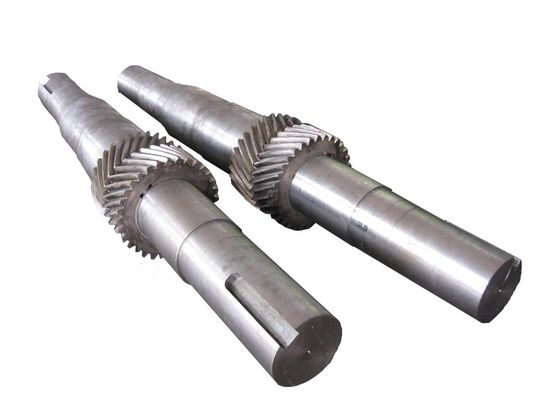

Mud Pump Parts Gear Shaft Used For FB-1600 Mud Pump
Gear Shaft Product Description
The pinion shaft is an alloy steel forging. Herringbone gears on the axles have medium tooth surfaces. To facilitate maintenance,single row long cylindrical roller bearings without inner ring ribs are used. Due to the extension of the shaft, pulleys or sprockets can be installed on either side of the shaft.
The blank of the pinion shaft is forged with high-quality alloy and is made by rough machining, heat treatment, finishing and gear hobbing. It is a key part of the power end. Its two ends extend to the outside of the frame and are used to install a large pulley to input power to the mud pump.
Mud Pump Part List
| NO. | Product Description | MFG | Model | Part No. | Quantity |
| 1 | Clamp, Piston Rod c/w H2O, FB-1600-1300, E-1600-1300 | EMSCO | FB 1600 & FD 1600 | 1316937 | 12 |
| 2 | FILTER ELEMENT | EMSCO | FB 1600 & FD 1600 | 64212848 (64-212-848) | 12 |
| 3 | LINER 6-1/2" HP W/STOP, | EMSCO | FB 1600 & FD 1600 | 05499650HP | 60 |
| 4 | SEAL, LINER | EMSCO | FB 1600 & FD 1600 | 6316-0373-00 | 24 |
| 5 | LINER SIZE 5" | EMSCO | FB 1600 & FD 1600 | 05499500HP | 12 |
| 6 | LINER SIZE 5-1/2" W/STOP | EMSCO | FB 1600 & FD 1600 | 05499550HP | 18 |
| 7 | LINER SIZE 7"HP W/STOP | EMSCO | FB 1600 & FD 1600 | 05499700HP | 12 |
| 8 | SEAL PONY ROD | EMSCO | FB 1600 & FD 1600 | 0-7602-2131-47 | 36 |
| 9 | SEAL OIL | EMSCO | FB 1600 & FD 1600 | 0-7602-2132-76 | 36 |
| 10 | WEAR PLATE | EMSCO | FB 1600 & FD 1600 | 6316-0365-00 | 12 |
| 11 | SPRING LOCK | EMSCO | FB 1600 & FD 1600 | 0-6397-0546-00 | 24 |
| 12 | Liner 6-1/2”HP W/STOP, FOR TRIPLEX MUD PUMP | EMSCO | FB-1600 | 0549965HP | 75 |
| 13 | LINERSIZE 6" W/STOP, FOR TRIPLEX MUD PUMP | EMSCO | FB-1600 | 05499600HP | 24 |
Supply Mud Pump Parts Brand
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
