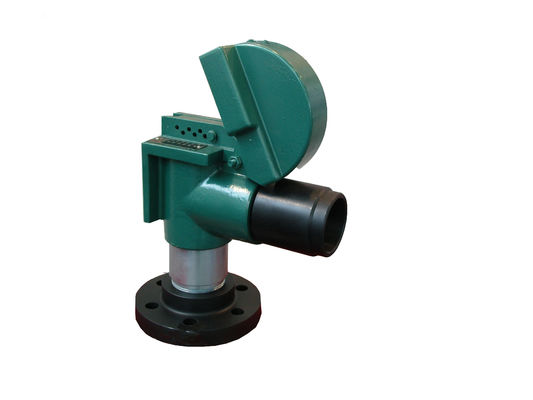

API 7K Shear Pin Relief Valve FB-1600 Oil Drilling

Mud Pump Parts Shear Pin Safety Valve Used For FB-1600

Description Of Shear Pin Safety Valve

Shear pin safety valve is used in the discharge part of mud pump. It can change the relief pressure by changing the position of the safety pin,

which is easy to operate and reliable. The parts in the safety pin safety valve are: safety pin, piston, piston rod and cushion. Shear pin safety

valve has two connection methods, one is threaded connection, and the other is flange connection. Shear pin safety valve is the insurance of mud

pump. Before the mud pump works, after determining the rated pressure according to the specifications of the cylinder liner and piston, lift the

upper cover of the safety valve, and insert the shear pin into the shear plate. inside the pin hole. When working, when the pump head pressure

exceeds the rated pressure, the pin is cut off, and the mud is discharged from the side hole of the safety valve, which plays a corresponding

protective role.

Supply Mud Pump Brand

BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL

HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL

RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600

LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800

ITECO:T-500,T-800,T-1000,T-1600

Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT

WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16

NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700

EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600

GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
