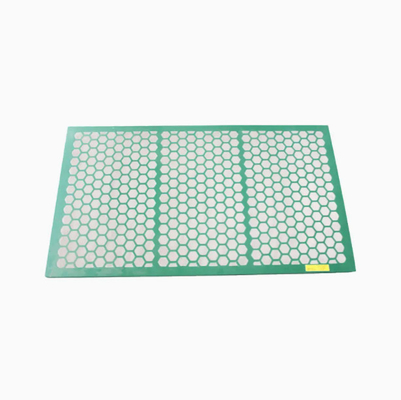

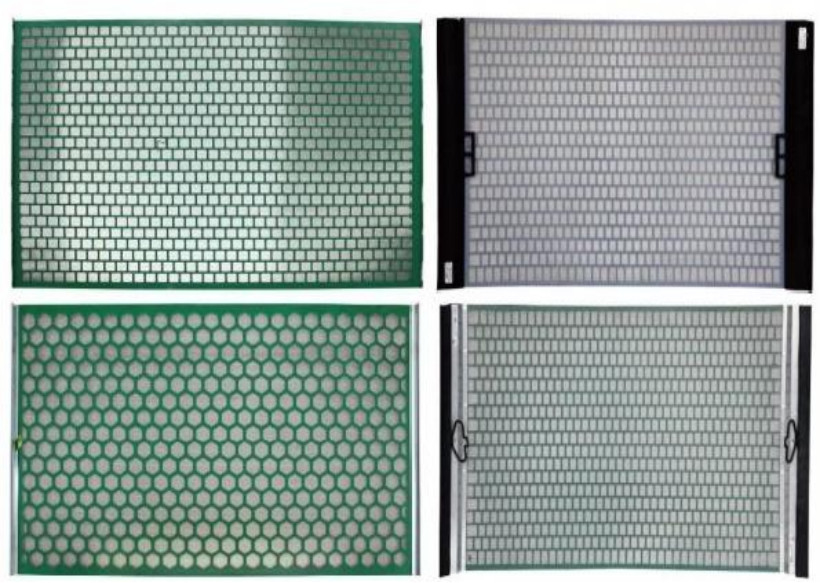

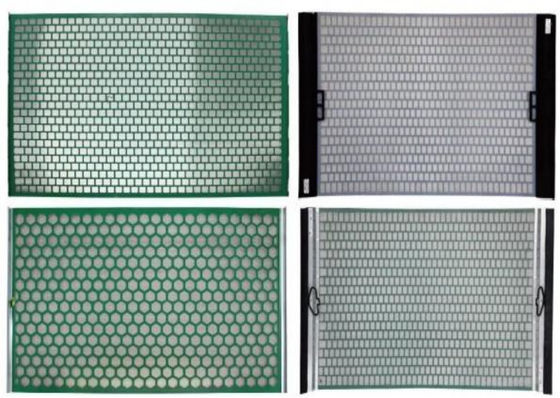

Hook Strip Flat Screen FLC2000 Shaker Screen Mesh for Oilfield Drilling

Certification
China Shaanxi FORUS Petroleum Machinery Equipment Co., Ltd certification
China Shaanxi FORUS Petroleum Machinery Equipment Co., Ltd certification
I'm Online Chat Now

Hook Strip Flat Screen FLC2000 Shaker Screen Mesh for Oilfield Drilling

Hook Strip Flat Screen FLC2000 Shaker Screen Mesh for Oilfield Drilling
Hook Strip Flat Screen FLC2000 Shaker Screen Mesh for Oilfield Drilling Hook Strip Flat Screen FLC2000 Shaker Screen Mesh for Oilfield Drilling

Large Image :  Hook Strip Flat Screen FLC2000 Shaker Screen Mesh for Oilfield Drilling

Product Details:
Place of Origin: China
Brand Name: FORUS
Certification: API
Model Number: FLC2000
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Packaging Details: Wooden Box
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 PCS Per Month

Hook Strip Flat Screen FLC2000 Shaker Screen Mesh for Oilfield Drilling

Description
Product Name: Hook Strip Flat Screen Material: SS304
Model: FLC2000 Dimension: 697×1053mm
Range Of Mesh: 20-325 Port: Shanghai
Highlight:

Flat Screen Drilling Shaker Screen Mesh

,

Oilfield Drilling Shaker Screen Mesh

,

Hook Strip Drilling Shaker Screen Mesh

Hook Strip Flat Screen FLC2000 Oilfield Drilling Shaker Screen Mesh



Hook Strip Flat Screen Description

1.The mesh of each cloth is different.The screen will have better effect with accurate collocation.Because of the difference of the mesh and the hole of the support sheet,we will promise the most effective area on the condition of bearing enough force.
2.The SS wire cloth bonds with the support plank together tightly so that the strength of the screen is enough strong.The servce time of the screen is extended.
3.The surface is divided into more small parts.They can prevent excessive expansion of local damage.At the same time,we have the special rubber plug to repair the damage.It can save time and reduce the cost.



Hook Strip Flat Screen Data



Hook Strip Flat Screen
Screen Mode

Range of Mesh



Dimension(W*L)



Model of replaceable screen



 PWP-1 20-325 697×1053mm FLC2000
 PWP-2 20-325 695×1050mm FLC500
 PWP-3 20-325 697×846mm FLC313M
 PWP-4 20-325 903×1155mm BEM-3
 PWP-5 20-325 1212×1141mm ALS-2
 PWP-6 20-325 915×1150mm LCM-2D
 PWP-7 20-325 700×1165mm S250
