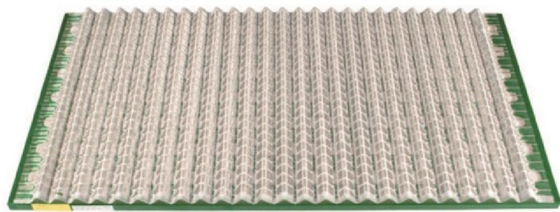

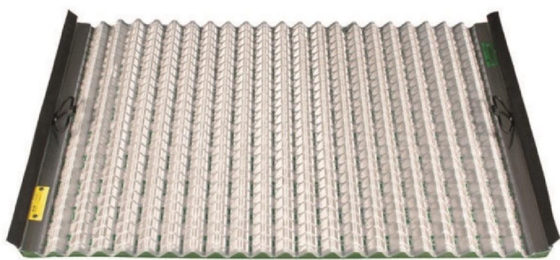

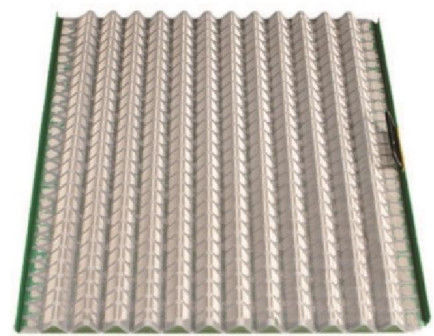

Pyramid Screen Wave Type Derrick FLC500 Oilfield Drilling Shaker Screen Mesh
Suitable for Derrick FLC500,FLC 2000,DP 600 and Hyperpool series vibrating screens,mi-swaco ALS vibrating screens,etc.Wave type,can adapt to a variety of working conditions,price and economic weight.
The effective screening area is large and the drilling fluid treatment is the highest.Stainless steel mesh surface is wavy,and metal support plate closely bonded together.The effective filtration area of the wave screen can reach 125* to 150%of that of the plate vibrating screen of the same specification,greatly increasing the mud handling capacity.
|
RANGE OF MESH
|
DIMENSION(LENGTH*WIDTH)
|
BRAND&MODEL OF SHAKER
|
WEIGHT(KG) |
| 20-325 |
635*1253MM |
BRANDT BL-501/COBRA/LCM-3D |
17.5 |
| 20-325 |
697*1050MM |
DERRICK FLC 500 Series |
7.5 |
| 20-325 |
697*1053MM |
DERRICK FLC 2000 |
5.8 |
| 20-325 |
710*630MM |
DERRICK DP600 |
|
| 20-325 |
1070*568MM |
DERRICKHyperpool |
|
| 20-325 |
915*1150MM |
BRANDTLCM-ZD |
10.0 |
| 20-325 |
0165*700MM |
HUA YOU MACHINE FACTORY |
6.5 |
Mesh Size Parameters
| D100 Separation size |
API ID |
| >1850.0 TO 2180.0 |
API10 |
| >780.0 TO 925.0 |
API20 |
| >462.5 TO 550.0 |
API35 |
| >390.0 TO 462.5 |
API40 |
| >275.0 TO 327.5 |
API50 |
| >231.0 TO 275.0 |
API60 |
| >196.0 TO 231.0 |
API70 |
| >165.0 TO 196.0 |
API80 |
| >137.5 TO 165.0 |
API 100 |
| >116.5 TO 137.5 |
API 120 |
| >98.0 TO 116.5 |
API 140 |
| >82.5 TO 98.0 |
API 170 |
| >69.0 TO 82.5 |
API 200 |
| >58.0 TO 69.0 |
API 230 |
| >49.0 TO 58.0 |
API 270 |
| >41.5 TO 49.0 |
API 325 |
| >35.0 TO 41.5 |
API 400 |
| D100 Separation size |
ASTM Single screen mesh number |
| 2000 μm |
ASTM 10Mesh |
| 1000μm |
ASTM18 Mesh |
| 850μm |
ASTM 20 Mesh |
| 7 1 0 μm |
ASTM25 Mesh |
| 600μm |
ASTM 30Mesh |
| 500μm |
ASTM 35Mesh |
| 425μm |
ASTM 40Mesh |
| 3 5 5 μm |
ASTM 45Mesh |
| 300μm |
ASTM 50Mesh |
| 250μm |
ASTM 60Mesh |
| 2 1 2μm |
ASTM 70Mesh |
| 180μm |
ASTM 80 Mesh |
| 1 5 0 μm |
ASTM100 Mesh |
| 125μm |
ASTM 120 Mesh |
| 1 0 6 μm |
ASTM140 Mesh |
| 90μm |
ASTM170 Mesh |
| 75μm |
ASTM200 Mesh |
| 63μm |
ASTM 230 Mesh |
| 53μm |
ASTM 270 Mesh |
| 45μm |
ASTM 325 Mesh |
| 38μm |
ASTM400 Mesh |
| API ID |
D100 Separation size(μm) |
API ID |
D100 Separation size(μm) |
| API 20 |
>780.0 TO 925.0 |
API 120 |
>116.5.TO 137.5 |
| API 30 |
>550.0 TO 655.0 |
API 140 |
>137.5.TO 165.0 |
| API 35 |
>462.0 TO 550.0 |
API 170 |
>137.5.TO 165.0 |
| API 40 |
>390.0 TO 462..0 |
API 200 |
>137.5.TO 165.0 |
| API 50 |
>275.0 TO 390.0 |
API 230 |
>137.5.TO 165.0 |
| API 60 |
>213.0TO 275.0 |
API 370 |
>137.5.TO 165.0 |
| API 70 |
>196.0 TO 213.0 |
API 325 |
>137.5.TO 165.0 |
| API 80 |
>165.0TO 196.0 |
API 400 |
>137.5.TO 165.0 |
| API 100 |
>137.5.TO 165.0 |
|
|
Advantages
Our company has a complete set of composite frame screen mold,and has its own vibration screen screen,Mi-swacomongoose,mi-swaco md-3/md-2,Nov Brandt Cobra,Venom,D380,vsm-300,layer 1/ layer 2,FSI,Derek 500 and 2000,along with more than 10 vibrating screens,used alternative mesh injection molds.According to customer requirements,we can also develop composite frame screen
injection mold.
The iron frame is automatically welded by the robot,with high welding strength and solid quality.
Injection molding for plastic disposable plastic,high temperature of 140℃ or above,good toughness and screen mesh to enhance aseismatic ability and service life.
Injection molding for plastic disposable plastic,high temperature of 140℃ or above,good toughness and screen mesh to enhance aseismatic ability and service life.
Guikang series screen adopts three layers of screen since API60,the screen material is ss316/304,in line with the American API RP 13C standard,and the separation effect is good,long service life.
Screen hot pressing using four tensioning process,compared with the peer screen more flat,and the bottom mesh fit better,longer service life.
The regular shape of the composite frame screen makes it easier to repair the partial damage of the screen and continue to use through the plug,thus further reducing the cost.
Compared with the iron frame screen,the effective usable area of the composite frame screen increases by 10%-20%.
Composite material frame screen,not easy to rust,storage life greatly extended,can be stored for more than 5 years,does not affect the service life.
