Product Details:
|
| Product Name: | Drill Pipe Power Tong | Size: | 2 3/8〞～5〞 |
|---|---|---|---|
| Industry: | Oil Drilling | Warranty: | 1 Year |
| Max Torque: | 50 | COC: | Provide |
| Air Pressure: | 72-130PSI | Pressure Rating: | 2030 |
| High Light: | ZQ162-50 Drill Pipe Power Tong,Drill Pipe Power Tong API 7K,Oil Drilling Wellhead Tools 5〞 |
||

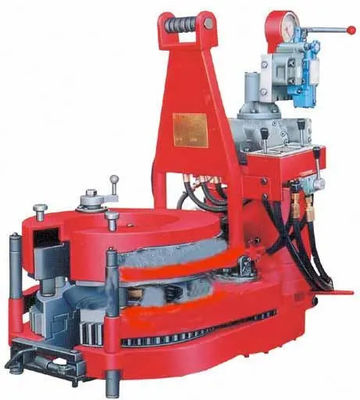

ZQ162-50 Drill Pipe Power Tong API 7K
Drill Pipe Power Tong Introduction
The drill pipe power tong is an ideal oil drilling wellhead tools, widely used in marine, land drilling and workover operations on unloading column threaded operations. Use of this clamp can play safety, effort to improve the ergonomics of the role. The series clamp, open type, be free to disengage the column, the mobile; set torque clamp and spinner clamp at one shackle on alternative cat work, tongs and spin rope. The tongs are in line with norms SY/T5074 standards and API Spec 7K.
Drill Pipe Power Tong Technical Parameter
| Model | ZQ127-25 | ZQ162-50 | ZQ203-100 | ZQ203-125 | ||
| Size range | Drill pipe | mm | 65-127 | 85-162 | 127-203 | 127-203 |
| in | 23/8〞～31/2〞 | 23/8〞～5〞 | 31/2〞～8〞 | 31/2〞～8〞 | ||
| Casing | mm | 65-127 | 114.3～153.7 | |||
| in | 23/8〞～31/2〞 | 41/2〞～51/2〞 | ||||
| Oil pipe | mm | 65-127 | 138-156 | |||
| in | 23/8〞～31/2〞 | 31/2〞～41/2〞 | ||||
| Max.torque | kN.m | 25 | 50 | 100 | 125 | |
| ft.lbf | 18440 | 36880 | 73750 | 92200 | ||
| Speed(High gear) | rpm | 65 | 60 | 40 | 40 | |
| Speed(Low gear) | rpm | 10.5 | 4.1 | 2.7 | 2.7 | |
| Air pressure | MPa | 0.5–0.9 | ||||
| psi | 72–130 | |||||
| Pressure rating | MPa | 12 | 14 | 16.6 | 20.7 | |
| psi | 1740 | 2030 | 2400 | 3000 | ||
| Flow rating | L/min | 120 | 120 | 114 | 114 | |
| gpm | 31.7 | 31.7 | 30 | 30 | ||
| Shifting distance | mm | 1000 | 1000 | 1500 | 1500 | |
| in | 39.4 | 39.4 | 59 | 59 | ||
| Size | mm | 1110×735× 815 |
1570×800×1190 | 1760×1000×1360 | 1760×1080×1360 | |
| in | 44×31×32 | 62×31×47 | 69×39×53 | 69×40.5×53 | ||
| Weight | kg | 620 | 1500 | 2400 | 2650 | |
| lb | 1360 | 3310 | 5290 | 5840 | ||
