Product Details:
|
| Product Name: | Sucker Rods Elevators | Product Type: | Drilling Wellhead Tools |
|---|---|---|---|
| Material: | Alloy | Processing Type: | Forging |
| Industry: | Oil Drilling | Condition: | Brand New |
| High Light: | API 8C Wellhead Tools,API 8A Wellhead Tools,Forging sucker rod elevator |
||

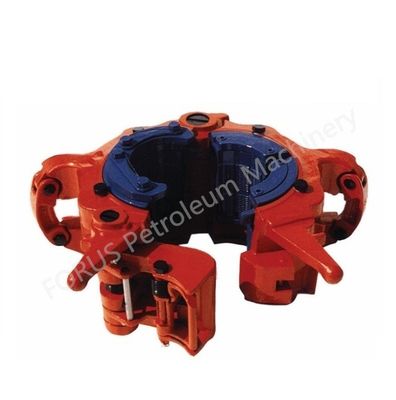

Wellhead Tools API 8A/8C Sucker Rods Elevators Type
Product Description
Slip (type) elevator is an essential tool for clamping and hoisting drill pipe, casing and tubing in oil drilling and tripping operations. It is especially
suitable for the hoisting of one-piece tubing joints, one-piece joint casings and ESP columns. Products should be designed and manufactured in
accordance with API Spec 8C "Specification for Drilling and Production Lifting Equipment"
| Model | Size | Rated Capacity | |
| mm(in) | kn | short tons | |
| HYT | 60.3-88.9(2 3/8-3 1/2) | 1350 | 150 |
| YT | 33.4-88.9(1.315-31/2) | 675 | 75 |
| MYT | 33.4-73(1.315-2 7/8) | 360 | 40 |
| LYT | 26.7-52.4(1.05-1 1/16) | 180 | 20 |
| HYC | 88.9-139.7(3 1/2-7 5/8) | 1800 | 200 |
| MYC | 88.9-117.8(3 1/2-7) | 1125 | 125 |
| YC | 88.9-117.8(3 1/2-7) | 675 | 75 |
