|Product Name:||Sucker Rod Power Tong||Product Type:||XQ29/2.6|
|Industry:||Oil Drilling||Warranty:||1 Year|
XQ29/2.6 Wellhead Tools,
Oil Drilling Wellhead Tools,
API well head tools

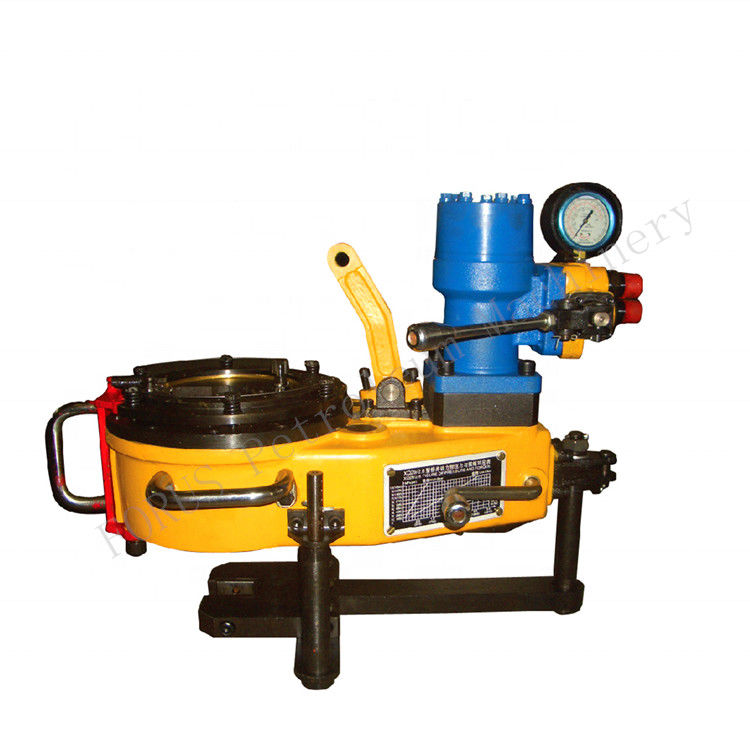

Wellhead Tools XQ29/2.6 Sucker Rod Power Tong
Wellhead Tools Applications
This series of power tongs is used for quick loading and unloading of sucker rods in oil well operations.
Clamps have the following features:
1. Clamp the sucker rod with the corresponding jaw set.
2. The mold can be equipped with a master clamp according to customer requirements.
3. It can be equipped with torque control valve according to customer requirements.
XQ29/2.6 hydraulic power tong is an improved version of XQ29/1.8, which is used for loading and unloading of sucker rod threads in oil well
Wellhead Tools XQ29/2.6 Sucker Rod Power Tong has the following features:
●Compact structure, simple and light. The main tong is driven by a low-speed high-torque hydraulic motor with a manual control valve. Spare
pliers are like wrenches.
●The operation is simple and convenient, and there are molds. Put the corresponding size jaw group into the main tongs, insert the corresponding
size into the spare tongs, turn the reset knob in the correct direction, and then the sucker rod can be loaded and unloaded through the manual
control valve. Two speeds, low-speed capture, high-speed rotation.
●Low gear torque is large, especially suitable for occasions where the sucker rod thread is difficult to break.
|Pipe Size Range of Master Tong||5/8-11/8 Sucker Rod||5/8-11/8 Sucker Rod|
|Pipe Size Range of Backup Tong||5/8-11/8 Sucker Rod||5/8-11/8 Sucker Rod|
|High Gear Rated Torque||700N.m||1000N.m|
|Low Gear Rated Torque||1800N.m||2600N.m|
|High Gear Rated Speed||104r/min||98r/min|
|Low Gear Rated Speed||40r/min||32r/min|
|Rated Operation Pressure||10 MPa||10 MPa|
|1450 psi||1450 psi|
|Max. Flow||65 L/min||80 L/min|
|Dimension :L x W x H||543 x 334 x 404||870 x 383 x 490|
|Weight(including Backup Tong)||105kg||100kg|
