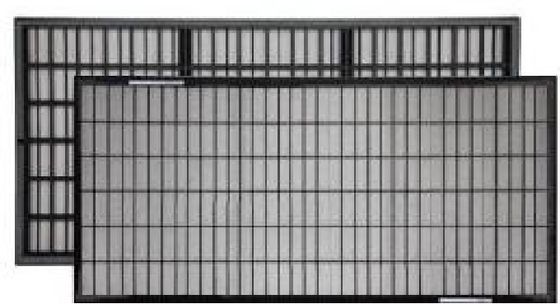

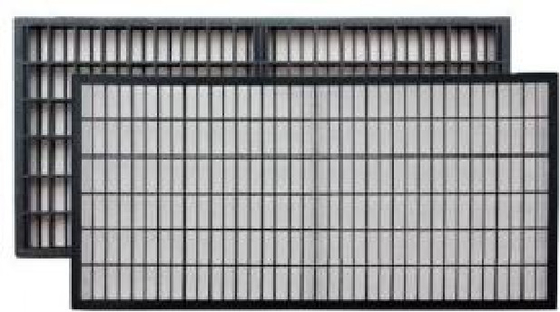

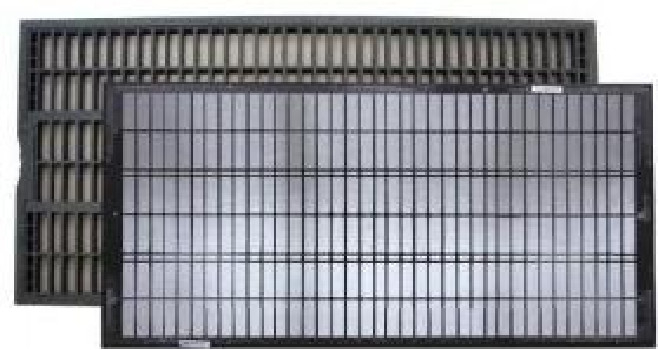

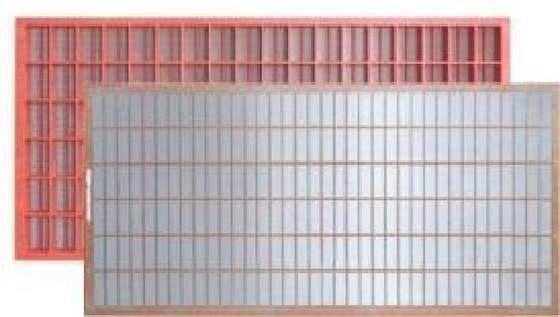

MONGOOSE PT&PRO Oilfield Drilling Shaker Screen Mesh Range 20-325

MONGOOSE PT&PRO Oilfield Drilling Shaker Screen Mesh Range 20-325
MONGOOSE PT&PRO Oilfield Drilling Shaker Screen Mesh Range 20-325 MONGOOSE PT&PRO Oilfield Drilling Shaker Screen Mesh Range 20-325 MONGOOSE PT&PRO Oilfield Drilling Shaker Screen Mesh Range 20-325 MONGOOSE PT&PRO Oilfield Drilling Shaker Screen Mesh Range 20-325

Large Image :  MONGOOSE PT&PRO Oilfield Drilling Shaker Screen Mesh Range 20-325

Product Details:
Place of Origin: China
Brand Name: FORUS
Certification: API
Model Number: MONGOOSE PT&PRO
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Packaging Details: Wooden Box
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 PCS Per Month
Contact Now

MONGOOSE PT&PRO Oilfield Drilling Shaker Screen Mesh Range 20-325

Description
Product Name: Composite Frame Screen Material: SS316
Range Of Mesh: 20-325 Application: Oilfield Drilling
Highlight:

Oilfield Drilling Shaker Screen Mesh

,

MONGOOSE Shaker Screen Mesh

MONGOOSE PT&PRO Oilfield Drilling Shaker Screen Mesh Range 20-325



Shaker Screen Mesh Description



1.Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths.The wire cloth can be combined with the frame with metal rubber lining,or directly bonded on the frame.

2.Every layer of wire cloth has different meshes,accurateky and reasonably making screening more micromesh.

3.High-strength composite frame screen and moderate tensional screening cloth, that form areliable whole,greatly enhance the tolerable flow.

4.Rapid wedge tensioning devices make screen installation more convenient,and save the time of machine halt for changing.

5.Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage.

6.Excellent high-strength composite frames enhance corrosion resistance.Have good shock absorption and extend working life of screen.



Shaker Screen Mesh Data

Composite Frame Screen



Screen Model



Range of Mesh

Npenen Kon-Ba gueek

Dimension(W"L)

Pa3Mep(wwpoTa*AnMHa)

Model of replaceable screen

MapkaM TMn ananTMBHOro BW6poCMTa
 FSK-1 20-325 585×1165mm MONGOOSE PT&PRO
FSK-2 20-325 635×1250mm KING COBRA&COBRA
 FSK-3 20-325 610×660mm MD-2&MD-3
FSK-4 20-325 913*650 VSM300
FSK-5 20-325 700*1250



Mesh Size Parameters



D100 Separation size API ID
>1850.0 TO 2180.0 API10
>780.0 TO 925.0 API20
>462.5 TO 550.0 API35
>390.0 TO 462.5 API40
>275.0 TO 327.5 API50
>231.0 TO 275.0 API60
>196.0 TO 231.0 API70
>165.0 TO 196.0 API80
>137.5 TO 165.0 API 100
>116.5 TO 137.5 API 120
>98.0 TO 116.5 API 140
>82.5 TO 98.0 API 170
>69.0 TO 82.5 API 200
>58.0 TO 69.0 API 230
>49.0 TO 58.0 API 270
>41.5 TO 49.0 API 325
>35.0 TO 41.5 API 400



D100 Separation size ASTM Single screen mesh number
2000 μm ASTM 10Mesh
1000μm ASTM18 Mesh
850μm ASTM 20 Mesh
7 1 0 μm ASTM25 Mesh
600μm ASTM 30Mesh
500μm ASTM 35Mesh
425μm ASTM 40Mesh
3 5 5 μm ASTM 45Mesh
300μm ASTM 50Mesh
250μm ASTM 60Mesh
2 1 2μm ASTM 70Mesh
180μm ASTM 80 Mesh
1 5 0 μm ASTM100 Mesh
125μm ASTM 120 Mesh
1 0 6 μm ASTM140 Mesh
90μm ASTM170 Mesh
75μm ASTM200 Mesh
63μm ASTM 230 Mesh
53μm ASTM 270 Mesh
45μm ASTM 325 Mesh
38μm ASTM400 Mesh



API ID D100 Separation size(μm) API ID D100 Separation size(μm)
API 20 >780.0 TO 925.0 API 120 >116.5.TO 137.5
API 30 >550.0 TO 655.0 API 140 >137.5.TO 165.0
API 35 >462.0 TO 550.0 API 170 >137.5.TO 165.0
API 40 >390.0 TO 462..0 API 200 >137.5.TO 165.0
API 50 >275.0 TO 390.0 API 230 >137.5.TO 165.0
API 60 >213.0TO 275.0 API 370 >137.5.TO 165.0
API 70 >196.0 TO 213.0 API 325 >137.5.TO 165.0
API 80 >165.0TO 196.0 API 400 >137.5.TO 165.0
API 100 >137.5.TO 165.0
