Product Details:
|
| Product Name: | Anti-Slip Mat | Use For: | Rotary Table |
|---|---|---|---|
| Size: | 2100X1600MM | Material: | PU |
| Colour: | Yellow | Thickness: | 30MM |
| Highlight: | PU Rotary Table Anti-Slip Mat,Customized Rotary Table Anti-Slip Mat,Yellow Rotary Table Anti-Slip Mat |
||

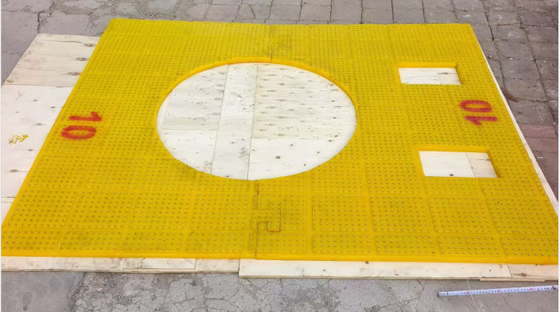

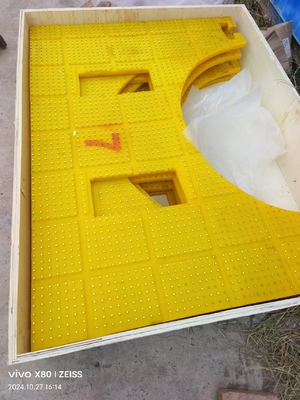

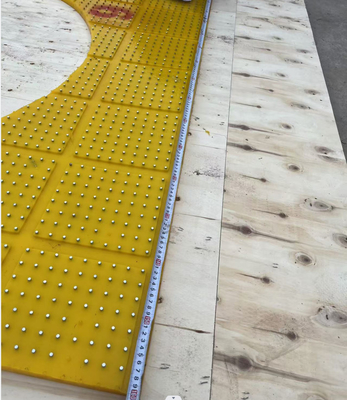

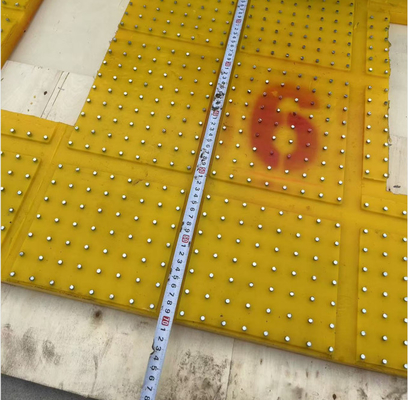

Customized Rotary Table Anti-Slip Mat Size 2100X1600 MM Material PU Yellow Colour With Steel Nails
Anti-Slip Mat Introduction
Polyurethane anti-slip mat adopts polyurethane board as the main board, which has the characteristics of high strength, good elasticity, oil and solvent resistance, good low temperature performance and good aging resistance. There are multiple sewage grooves arranged vertically and horizontally on the surface, oil or water can flow into the grooves and be discharged in time, reducing the influence of oil or water on the anti-skid effect. The metal rivets protruding from a certain height and the polyurethane rubber protruding rubber particles with better wear resistance make the utility model have excellent anti-skid performance and long service life, and the elastic rubber plate or resin plate anti-skid pad can also be used. It can effectively reduce the damage to the rotary table and the drilling tool during the operation of the drilling rig.
Standard ZP-175, ZP-275, ZP-375, ZP-205
We could accept customized.
| Material | Polyurethane rubber | Model | D3140 |
| No. | Item | Value | |
| 1 | Shore hardness | 90±2 | |
| 2 | 100% Stress at definite elongation | 5.8Mpa | |
| 3 | 300% Stress at definite elongation | 10.6Mpa | |
| 4 | Tensile Strength | 47Mpa | |
| 5 | Elongation at break | 580 | |
| 6 | Tear Strength (right angle) | 98(KN/M) | |
| 7 | Tear Strength (pants type) | 39(KN/M | |
| 8 | Springback | 36% | |
| 9 | Density | 1.27(g/cm³) | |
| 10 | DIN Abrasion | 50 mm³ | |
