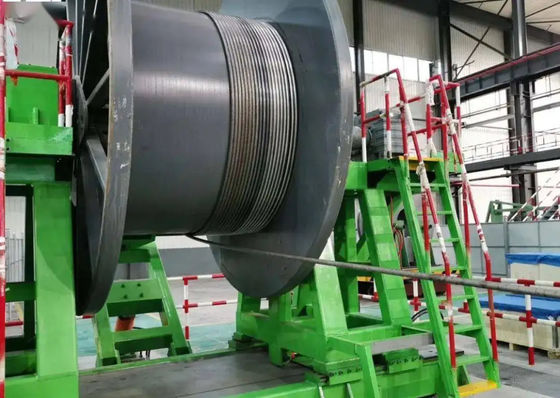

Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling

Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling
Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling

Large Image :  Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling

Product Details:
Place of Origin: China
Brand Name: FORUS
Certification: API 5ST
Model Number: Corrosion Resistance
Payment & Shipping Terms:
Minimum Order Quantity: 3000M
Packaging Details: Drum
Delivery Time: 40 days
Payment Terms: L/C, T/T, Western Union
Contact Now

Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling

Description
Product Name: Coiled Tubing Material: Special Steel
Grade: Corrosion Resistance 2507 2205 316L 13Cr Industry: Oilfield Drilling
Advantage: Free Inner-flash Port: Shanghai
Highlight:

13Cr Free Coiled Tubing

,

2205 Coiled Tubing

,

2507 Coiled Tubing

Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling



Product Name: Coiled Tubing

Product description: Coiled tubing products are made of special long tube billets that are continuously welded at the manufacturer at one time, and the finished pipe string is wound on a reel and delivered to the user. The pipe string will be bent and deformed repeatedly during use, and it must be rewound on the reel after use. Continuous tubing can be used for dozens of downhole operations such as logging, well repair, drilling, and completion; continuous pipeline pipe can be used for oil production, submarine pipelines, and transport pipes. At present, high-quality continuous tubing products that meet user needs can be produced according to API Spec 5LCP and API Spec 5ST standards. Performance characteristics: Continuous tubing products have high strength, high plasticity, and good low-cycle fatigue performance. They can be used repeatedly for more than 20 times and are used for downhole operations in oil fields. They are efficient, low-cost, safe, environmentally friendly, time-saving, and labor-saving.



Coiled Tubing Specifications:

Tube outer diameter: φ25.4mm-φ88.9 mm (1inch-3.5inch) Tube length: maximum 8000m Implementation standard: API Spec. 5LCP, API Spec. 5ST Product material: API Spec. 5LCP X52C~X90C, API Spec. 5ST CT70-CT110 Yield strength: 483MPa-758MPa (70ksi-110ksi) for coiled tubing, 359MPa-621MPa (52ksi-90ksi) for coiled tubing.



Application Areas and Main Advantages of Coiled Tubing Products:

With the development of coiled tubing operation tools and related supporting equipment, coiled tubing operation technology has been applied to drilling, well repair, oil testing, oil production, production increase, completion and other fields. Its operation features are mainly: 1. Oil wells are operated without stopping production: The pressure control device allows the coiled tubing to operate safely under pressure conditions. 2. High-pressure pipelines: The coiled tubing string provides a high-pressure channel for fluids to enter and exit the wellbore. In addition, the coiled tubing string can be used to operate hydraulic tools or provide downhole power through fluid pumps. 3. Uninterrupted circulation: When the coiled tubing string is lowered into the well or withdrawn from the well, fluids can still be pumped into the well without interruption. 4. Rigidity and strength: The rigidity and strength of the coiled tubing string enable tools and equipment, as well as the coiled tubing string itself, to be pushed into and pulled out of high-angle wells and horizontal wells. 5. Installation of wires and pipelines: Wires or hydraulic pipelines can be installed in the coiled tubing string and terminated on the coiled tubing reel. Operational controls and power functions can be installed between the downhole tool assembly and the surface equipment.



Specific Parameter



Specification Wall Thickness Mass Per Unit Length Calculation Internal Diameter Cross Sectional Area Yield Strength Tensile Strength The Tube Body Load Minimum Test Pressure
Specified Minimum Min Yield Sress Min Tensile Stress
t tmin wpe d
OD Wall Thickness In In lb/ft In SQIN psi psi LBS LBS psi
3/4 0.75 0.08 0.08 0.075 0.58 0.59 0.1684 90,000 116,000 15,200 19,500 14,400
0.75 0.083 0.083 0.078 0.6 0.584 0.1739 90,000 116,000 15,700 20,200 15,000
0.75 0.087 0.087 0.082 0.63 0.576 0.1812 90,000 116,000 16,300 21,000 15,000
0.75 0.095 0.095 0.09 0.68 0.56 0.1955 90,000 116,000 17,600 22,700 15,000
0.75 0.102 0.102 0.097 0.72 0.546 0.2076 90,000 116,000 18,700 24,100 15,000
1 1 0.075 0.075 0.07 0.75 0.85 0.2179 90,000 116,000 19,600 25,300 10,100
1 0.08 0.08 0.075 0.8 0.84 0.2312 90,000 116,000 20,800 26,800 10,800
1 0.083 0.083 0.078 0.83 0.834 0.2391 90,000 116,000 21,500 27,700 11,200
1 0.087 0.087 0.082 0.86 0.826 0.2495 90,000 116,000 22,500 28,900 11,800
1 0.095 0.095 0.09 0.93 0.81 0.2701 90,000 116,000 24,300 31,300 13,000
1 0.102 0.102 0.097 0.99 0.796 0.2878 90,000 116,000 25,900 33,400 14,000
1 0.109 0.109 0.104 1.05 0.782 0.3051 90,000 116,000 27,500 35,400 15,000
1 0.118 0.118 0.11 1.13 0.764 0.327 90,000 116,000 29,400 37,900 15,000
1 0.125 0.125 0.117 1.18 0.75 0.3436 90,000 116,000 30,900 39,900 15,000
1 0.134 0.134 0.126 1.26 0.732 0.3646 90,000 116,000 32,800 42,300 15,000
1 1/4 1.25 0.075 0.075 0.07 0.95 1.1 0.2769 90,000 116,000 24,900 32,100 8,100
1.25 0.08 0.08 0.075 1.01 1.09 0.2941 90,000 116,000 26,500 34,100 8,600
1.25 0.087 0.087 0.082 1.1 1.076 0.3179 90,000 116,000 28,600 36,900 9,400
1.25 0.095 0.095 0.09 1.19 1.06 0.3447 90,000 116,000 31,000 40,000 10,400
1.25 0.102 0.102 0.097 1.27 1.046 0.3679 90,000 116,000 33,100 42,700 11,200
1.25 0.109 0.109 0.104 1.35 1.032 0.3907 90,000 116,000 35,200 45,300 12,000
1.25 0.118 0.118 0.11 1.44 1.014 0.4196 90,000 116,000 37,800 48,700 12,700
1.25 0.125 0.125 0.117 1.52 1 0.4418 90,000 116,000 39,800 51,200 13,500
1.25 0.134 0.134 0.126 1.62 0.982 0.4698 90,000 116,000 42,300 54,500 14,500
1.25 0.145 0.145 0.137 1.73 0.96 0.5034 90,000 116,000 45,300 58,400 15,000
1.25 0.156 0.156 0.148 1.84 0.938 0.5362 90,000 116,000 48,300 62,200 15,000
1.25 0.175 0.175 0.167 2.03 0.9 0.591 90,000 116,000 53,200 68,600 15,000
1 1/2 1.5 0.087 0.087 0.082 1.33 1.326 0.3862 90,000 116,000 34,800 44,800 7,900
1.5 0.095 0.095 0.09 1.44 1.31 0.4193 90,000 116,000 37,700 48,600 8,600
1.5 0.102 0.102 0.097 1.54 1.296 0.448 90,000 116,000 40,300 52,000 9,300
1.5 0.109 0.109 0.104 1.64 1.282 0.4763 90,000 116,000 42,900 55,300 10,000
1.5 0.118 0.118 0.11 1.76 1.264 0.5123 90,000 116,000 46,100 59,400 10,600
1.5 0.125 0.125 0.117 1.86 1.25 0.54 90,000 116,000 48,600 62,600 11,200
1.5 0.134 0.134 0.126 1.98 1.232 0.5751 90,000 116,000 51,800 66,700 12,100
1.5 0.145 0.145 0.137 2.12 1.21 0.6172 90,000 116,000 55,500 71,600 13,200
1.5 0.156 0.156 0.148 2.26 1.188 0.6587 90,000 116,000 59,300 76,400 14,200
1.5 0.175 0.175 0.167 2.5 1.15 0.7285 90,000 116,000 65,600 84,500 15,000
1.5 0.188 0.188 0.18 2.66 1.124 0.7749 90,000 116,000 69,700 89,900 15,000
1.5 0.204 0.204 0.196 2.85 1.092 0.8306 90,000 116,000 74,800 96,300 15,000
1 3/4 1.75 0.095 0.095 0.09 1.7 1.56 0.4939 90,000 116,000 44,500 57,300 7,400
1.75 0.102 0.102 0.097 1.82 1.546 0.5281 90,000 116,000 47,500 61,300 8,000
1.75 0.109 0.109 0.104 1.93 1.532 0.5619 90,000 116,000 50,600 65,200 8,600
1.75 0.118 0.118 0.11 2.08 1.514 0.605 90,000 116,000 54,500 70,200 9,100
1.75 0.125 0.125 0.117 2.19 1.5 0.6381 90,000 116,000 57,400 74,000 9,600
1.75 0.134 0.134 0.126 2.34 1.482 0.6803 90,000 116,000 61,200 78,900 10,400
1.75 0.145 0.145 0.137 2.51 1.46 0.7311 90,000 116,000 65,800 84,800 11,300
1.75 0.156 0.156 0.148 2.68 1.438 0.7812 90,000 116,000 70,300 90,600 12,200
1.75 0.175 0.175 0.167 2.97 1.4 0.8659 90,000 116,000 77,900 100,400 13,700
1.75 0.188 0.188 0.18 3.17 1.374 0.9225 90,000 116,000 83,000 107,000 14,800
1.75 0.204 0.204 0.196 3.4 1.342 0.9908 90,000 116,000 89,200 114,900 15,000
1.75 0.224 0.224 0.216 3.69 1.302 1.0739 90,000 116,000 96,700 124,600 15,000
1.75 0.25 0.25 0.242 4.05 1.25 1.1781 90,000 116,000 106,000 136,700 15,000
2 2 0.109 0.109 0.104 2.23 1.782 0.6475 90,000 116,000 58,300 75,100 7,500
2 0.118 0.118 0.11 2.4 1.764 0.6977 90,000 116,000 62,800 80,900 7,900
2 0.125 0.125 0.117 2.53 1.75 0.7363 90,000 116,000 66,300 85,400 8,400
2 0.134 0.134 0.126 2.7 1.732 0.7855 90,000 116,000 70,700 91,100 9,100
2 0.145 0.145 0.137 2.9 1.71 0.845 90,000 116,000 76,100 98,000 9,900
2 0.156 0.156 0.148 3.1 1.688 0.9037 90,000 116,000 81,300 104,800 10,700
2 0.175 0.175 0.167 3.45 1.65 1.0033 90,000 116,000 90,300 116,400 12,000
2 0.188 0.188 0.176 3.68 1.624 1.0702 90,000 116,000 96,300 124,100 12,700
2 0.204 0.204 0.192 3.95 1.592 1.151 90,000 116,000 103,600 133,500 13,800
2 0.224 0.224 0.212 4.29 1.552 1.2498 90,000 116,000 112,500 145,000 15,000
2 0.25 0.25 0.238 4.72 1.5 1.3745 90,000 116,000 123,700 159,400 15,000
2 0.276 0.276 0.261 5.13 1.448 1.4948 90,000 116,000 134,500 173,400 15,000
2 0.281 0.281 0.266 5.21 1.438 1.5175 90,000 116,000 136,600 176,000 15,000
2 3/8 2.375 0.109 0.109 0.104 2.67 2.157 0.776 90,000 116,000 69,800 90,000 6,300
2.375 0.118 0.118 0.11 2.87 2.139 0.8367 90,000 116,000 75,300 97,100 6,700
2.375 0.125 0.125 0.117 3.04 2.125 0.8836 90,000 116,000 79,500 102,500 7,100
2.375 0.134 0.134 0.126 3.24 2.107 0.9434 90,000 116,000 84,900 109,400 7,600
2.375 0.145 0.145 0.137 3.49 2.085 1.0158 90,000 116,000 91,400 117,800 8,300
2.375 0.156 0.156 0.148 3.73 2.063 1.0875 90,000 116,000 97,900 126,200 9,000
2.375 0.175 0.175 0.167 4.15 2.025 1.2095 90,000 116,000 108,900 140,300 10,100
2.375 0.188 0.188 0.176 4.44 1.999 1.2917 90,000 116,000 116,300 149,800 10,700
2.375 0.204 0.204 0.192 4.78 1.967 1.3914 90,000 116,000 125,200 161,400 11,600
2.375 0.224 0.224 0.212 5.2 1.927 1.5137 90,000 116,000 136,200 175,600 12,900
2.375 0.25 0.25 0.238 5.73 1.875 1.669 90,000 116,000 150,200 193,600 14,400
2.375 0.276 0.276 0.261 6.25 1.823 1.82 90,000 116,000 163,800 211,100 15,000
2.375 0.281 0.281 0.266 6.35 1.813 1.8486 90,000 116,000 166,400 214,400 15,000
2.375 0.3 0.3 0.285 6.71 1.775 1.9556 90,000 116,000 176,000 226,800 15,000
2 5/8 2.625 0.145 0.145 0.137 3.88 2.335 1.1297 90,000 116,000 101,700 131,000 7,500
2.625 0.156 0.156 0.148 4.16 2.313 1.21 90,000 116,000 108,900 140,400 8,100
2.625 0.175 0.175 0.167 4.62 2.275 1.347 90,000 116,000 121,200 156,300 9,200
2.625 0.188 0.188 0.176 4.94 2.249 1.4393 90,000 116,000 129,500 167,000 9,700
2.625 0.204 0.204 0.192 5.33 2.217 1.5516 90,000 116,000 139,600 180,000 10,500
2.625 0.224 0.224 0.212 5.8 2.177 1.6896 90,000 116,000 152,100 196,000 11,600
2.625 0.25 0.25 0.238 6.4 2.125 1.8653 90,000 116,000 167,900 216,400 13,100
2.625 0.276 0.276 0.261 6.99 2.073 2.0368 90,000 116,000 183,300 236,300 14,300
2.625 0.281 0.281 0.266 7.1 2.063 2.0693 90,000 116,000 186,200 240,000 14,600
2.625 0.3 0.3 0.285 7.52 2.025 2.1913 90,000 116,000 197,200 254,200 15,000
2 7/8 2.875 0.134 0.134 0.126 3.96 2.607 1.1539 90,000 116,000 103,900 133,900 6,300
2.875 0.145 0.145 0.137 4.27 2.585 1.2436 90,000 116,000 111,900 144,300 6,900
2.875 0.156 0.156 0.148 4.58 2.563 1.3326 90,000 116,000 119,900 154,600 7,400
2.875 0.175 0.175 0.167 5.1 2.525 1.4844 90,000 116,000 133,600 172,200 8,400
2.875 0.188 0.188 0.176 5.45 2.499 1.587 90,000 116,000 142,800 184,100 8,800
2.875 0.204 0.204 0.192 5.88 2.467 1.7118 90,000 116,000 154,100 198,600 9,600
2.875 0.224 0.224 0.212 6.4 2.427 1.8656 90,000 116,000 167,900 216,400 10,600
2.875 0.25 0.25 0.238 7.08 2.375 2.0617 90,000 116,000 185,600 239,200 11,900
2.875 0.276 0.276 0.261 7.73 2.323 2.2535 90,000 116,000 202,800 261,400 13,100
2.875 0.281 0.281 0.266 7.86 2.313 2.29 90,000 116,000 206,100 265,600 13,300
2.875 0.3 0.3 0.285 8.33 2.275 2.4269 90,000 116,000 218,400 281,500 14,300
3 1/4 3.25 0.145 0.145 0.137 4.86 2.96 1.4144 90,000 116,000 127,300 164,100 6,100
3.25 0.156 0.156 0.148 5.21 2.938 1.5163 90,000 116,000 136,500 175,900 6,600
3.25 0.175 0.175 0.167 5.8 2.9 1.6906 90,000 116,000 152,200 196,100 7,400
3.25 0.188 0.188 0.176 6.21 2.874 1.8085 90,000 116,000 162,800 209,800 7,800
3.25 0.204 0.204 0.192 6.7 2.842 1.9521 90,000 116,000 175,700 226,400 8,500
3.25 0.224 0.224 0.212 7.31 2.802 2.1295 90,000 116,000 191,700 247,000 9,400
3.25 0.25 0.25 0.238 8.09 2.75 2.3562 90,000 116,000 212,100 273,300 10,500
3.25 0.276 0.276 0.261 8.85 2.698 2.5787 90,000 116,000 232,100 299,100 11,600
3.25 0.281 0.281 0.266 8.99 2.688 2.621 90,000 116,000 235,900 304,000 11,800
3.25 0.3 0.3 0.285 9.54 2.65 2.7803 90,000 116,000 250,200 322,500 12,600
3 1/2 3.5 0.156 0.156 0.148 5.63 3.188 1.6389 90,000 116,000 147,500 190,100 6,100
3.5 0.175 0.175 0.167 6.27 3.15 1.828 90,000 116,000 164,500 212,000 6,900
3.5 0.188 0.188 0.176 6.71 3.124 1.9561 90,000 116,000 176,000 226,900 7,200
3.5 0.204 0.204 0.192 7.25 3.092 2.1124 90,000 116,000 190,100 245,000 7,900
3.5 0.224 0.224 0.212 7.91 3.052 2.3054 90,000 116,000 207,500 267,400 8,700
3.5 0.25 0.25 0.238 8.76 3 2.5526 90,000 116,000 229,700 296,100 9,800
3.5 0.276 0.276 0.261 9.59 2.948 2.7955 90,000 116,000 251,600 324,300 10,700
3.5 0.281 0.281 0.266 9.75 2.938 2.8417 90,000 116,000 255,800 329,600 10,900
3.5 0.3 0.3 0.285 10.35 2.9 3.0159 90,000 116,000 271,400 349,800 11,700

Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling 0

Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling 1



Coiled Tubing Corrosion Resistance Material 2507 2205 316L 13Cr Free Inner-Flash For Oilfield Drilling 2



Tag:

Stainless Steel Oilfield Coiled Tubing,

High Strength Coiled Oil Tubing,

60k Coiled Tubing Unit

Contact Details
Shaanxi FORUS Petroleum Machinery Equipment Co., Ltd

Contact Person: Liu

Tel: 18966717078

Fax: 86-029-81511323

Send your inquiry directly to us (0 / 3000)

About

Mud Pump Parts

35CrMo BOMCO F-1600 Mud Pump Extension Rod Oil Drilling

Main Bearing Mud Pump Parts For BOMCO F1300 F-1600 Mud Pump

API 7K Connecting Rod For RS F-1600 Mud Pump Oil Drilling

Mud Pump Liner

Bomco Gardner Denver Ceramic Mud Pump Liners Ideco F-1600

Ceramic Cylinder Liner Mud Pump Spare Parts API 7K

Bimetal Mud Pump Liner For BOMCO/HH/RS F-1000 Mud Pump

LEAVE MESSAGE

Privacy Policy | China Good Quality Mud Pump Parts Supplier. © 2022 - 2025 mudpump-part.com. All Rights Reserved.
