Product Details:
|
| Product Name: | O Type Seal Ring | Model: | F-800 |
|---|---|---|---|
| Material: | Rubber | Condition: | Brand New |
| Warrantytolerance: | 1 Year | Application: | Drilling Mud Pump |
| High Light: | Mud Pump O Seal Ring 5000PSI,API 7K Rubber O Seal Ring,Bomco Mud Pump Rubber Sealing Ring |
||

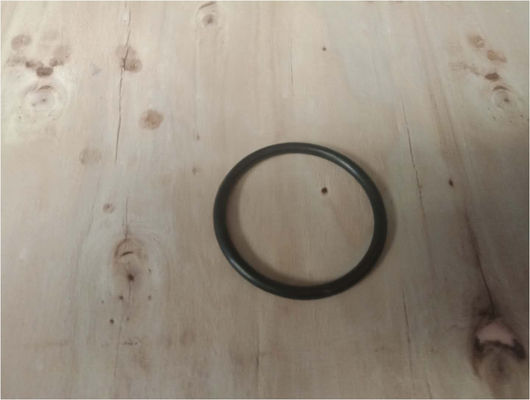

O Type Seal Ring Mud Pump Parts For BOMCO F-800 Mud Pump
Oil drilling pump seal ring for mud pump
Description:
| Description | Temperature Range | Pump Pressure | Abrasion | Drilling Fluid | Application For |
| NBR | -40~100 °C | 5000PSI(35Mpa) | Not Bad | Water base | Seals, Piston Rubber, Valve Rubber, Bladder |
| -40~210 °F | |||||
| polyurethane | -40~85 °C | 5000PSI(35Mpa) | Excellent | Water base & Oil base | Seals, Piston Rubber, Valve Rubber, |
| -40~185 °F | |||||
| HNBR | -50~150 °C | 7500PSI(52Mpa) | Good | Water base & Oil base | Piston Rubber, Valve Rubber, Bladder |
| -58~300 °F | |||||
| Viton | -15~250 °C | 7500PSI(52Mpa) | Not Bad | Oil base | Seals |
Mud Pump Part List
| Item | Product Description | Mud Pump Model | Part No. |
| 1 | Hydraulic cylinder assembly | F-1300/F-1600 | AH130102050100 |
| 2 | Cylinder head flange | F-1300/F-1600 | AH1301010502 |
| 3 | Cylinder head | F-1300/F-1600 | AH1301010503 |
| 4 | Plug board assembly | F-1300/F-1600 | AH130101050400 |
| 5 | Valve rod guides(lower) | F-1300/F-1600 | AH130101050500 |
| 6 | Cylinder head plug | F-1300/F-1600 | AH130101050600 |
| 7 | Positioning plate | F-1300/F-1600 | AH1301010507 |
| 8 | Cylinder head gasket | F-1300/F-1600 | AH1301010508 |
| 9 | Cylinder liner lock ring | F-1300/F-1600 | AH1301010518 |
| 10 | Bi-metal cylinder liner | F-1300/F-1600 | AH130102051200 |
| 11 | Clamp assembly | F-1300/F-1600 | AH130102050600 |
| 12 | Elbow NPT3/8-M22X1.5 | F-1300/F-1600 | AH1301020507 |
| 13 | Cylinder end cover | F-1300/F-1600 | AH1301010520 |
Supply Mud Pump Parts Brand And Model
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
