Product Details:
|
| Product Name: | Valve Rubber | Material: | Rubber |
|---|---|---|---|
| Industry: | Oil Drilling Mud Pump | Condition: | Brand New |
| COC: | Provide | Advantage: | High Quality |
| High Light: | Anti Corrosion Mud Pump Parts,Wear Resistance Mud Pump Parts,Cylinder valve rubber |
||
Mud Pump Parts Supply Mud Pump Cylinder Valve Rubber
Product description

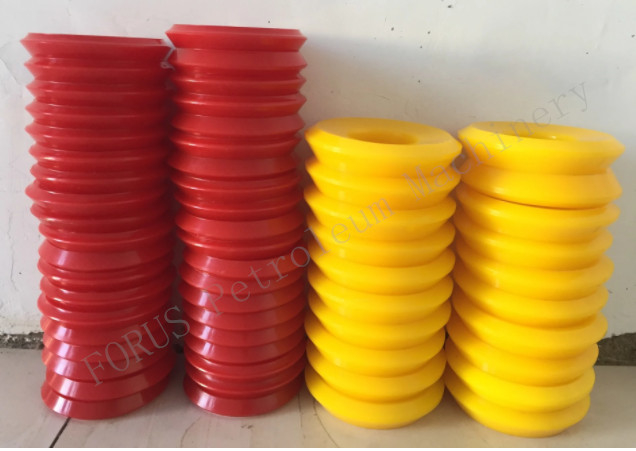

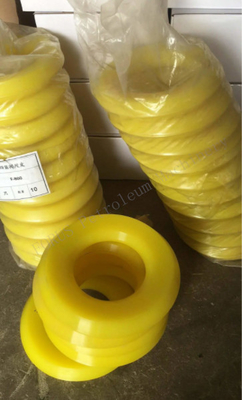

Valve PU rubber is used in oil drilling mud pumps and cementing pistons. Its purpose is to seal and cushion.
Made of polyurethane material, it has super advantages such as oil resistance, corrosion resistance and wear resistance. Field working
temperature -35ºC-100ºC, working pressure 40MPa.
Polyurethane has a longer service life than rubber, and is widely used in oil field fracturing trucks, oil field car washes, cement trucks, piston
pumps, mud pumps and other oil equipment consumables.
Mud Pump Part List
| Item | Product Description | Mud Pump Model | Part No. |
| 1 | Hydraulic cylinder assembly | F-1300/F-1600 | AH130102050100 |
| 2 | Cylinder head flange | F-1300/F-1600 | AH1301010502 |
| 3 | Cylinder head | F-1300/F-1600 | AH1301010503 |
| 4 | Plug board assembly | F-1300/F-1600 | AH130101050400 |
| 5 | Valve rod guides(lower) | F-1300/F-1600 | AH130101050500 |
| 6 | Cylinder head plug | F-1300/F-1600 | AH130101050600 |
| 7 | Positioning plate | F-1300/F-1600 | AH1301010507 |
| 8 | Cylinder head gasket | F-1300/F-1600 | AH1301010508 |
| 9 | Cylinder liner lock ring | F-1300/F-1600 | AH1301010518 |
| 10 | Bi-metal cylinder liner | F-1300/F-1600 | AH130102051200 |
| 11 | Clamp assembly | F-1300/F-1600 | AH130102050600 |
| 12 | Elbow NPT3/8-M22X1.5 | F-1300/F-1600 | AH1301020507 |
| 13 | Cylinder end cover | F-1300/F-1600 | AH1301010520 |
product description
1. Rubber products are suitable for oil-based and water-based drilling mud.
Including: seals, piston rubber, valve core, air bag, etc.
2. Piston rubber and valve rubber are the main components of the hydraulic end system of the mud pump.
At the same time, it is one of the most used wearing parts.
3. Piston rubber and valve rubber are vulcanized rubber products.
Common piston rubber materials include nitrile rubber and acrylate rubber.
Function
1 Increase the contact area of the screw with the machine.
2. When the trampoline is excluded, the unloading screw damages the surface of the machine.
It must be a trampoline with a flat pad close to the machine surface,
Spring washer between flat washer and nut.
