4.5'' To 20" Oil Well Casing Pipe API SPEC 5CT ISO11960

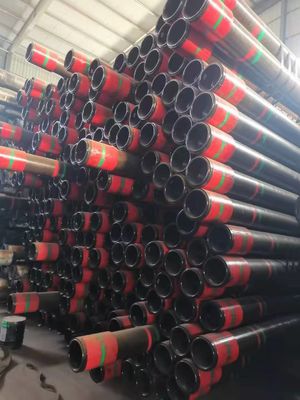

Large Image : 4.5'' To 20" Oil Well Casing Pipe API SPEC 5CT ISO11960

Product Details:

Place of Origin:	China
Brand Name:	FORUS
Certification:	API 5CT
Model Number:	Standard

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Packaging Details:	Bundling
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union

Contact Now

4.5'' To 20" Oil Well Casing Pipe API SPEC 5CT ISO11960

Description

Product Name:

Casing Pipe

OD:

4-1/2" To 20"

Industry:

Oil Drilling

Thread Type:

STC, LTC, BTC, Premium Connection (, NEW , PH-6)

High Light:

20" oil well casing pipe

4.5'' oil well casing pipe

ISO11960 well casing pipe

Drilling Casing pipe API SPEC 5CT ISO11960 Standard

API 5CT Casing Pipe

Grade: H40, J55, K55, L80, L80-13Cr, L80-9Cr, N80-1, N80Q, P110

O.D: 4 1/2"-20"

Connection: STC, LTC, BTC, Premium Connection (, NEW , PH-6)

Applications:
Casing: Insert into the bored well from the ground surface as the pipe of wall lining, and connect pipes with couplings. Its main materials are steel grades of J55, N80, P110, as well as C90, T95 etc resistant to hydrogen sulfide corrosion.

Pruduct Parameter

Labels ^a		OD mm	Nominal Linear Mass ^b,c T&C kg/m	WT t mm	Type of end-finish ^d
Labels ^a					H40	J55 K55	M65	L80 R95	N80 Type 1, Q	C90 T95	P110	Q125
1	2				H40	J55 K55	M65	L80 R95	N80 Type 1, Q	C90 T95	P110	Q125
1	2	3	4	5	6	7	8	9	10	11	12	13
4-1/2 4-1/2 4-1/2 4-1/2 4-1/2	9.50 10.50 11.60 13.50 15.10	114.30 114.30 114.30 114.30 114.30	14.14 15.63 17.26 20.09 22.47	5.21 5.69 6.35 7.37 8.56	PS - - - -	PS PSB PSLB - -	PS PSB PLB PLB -	- - PLB PLB -	- - PLB PLB -	- - PLB PLB -	- - PLB PLB PLB	- - - - PLB
5 5 5 5 5 5 5	11.50 13.00 15.00 18.00 21.40 23.20 24.10	127.00 127.00 127.00 127.00 127.00 127.00 127.00	17.11 19.35 22.32 26.79 31.85 34.53 35.86	5.59 6.43 7.52 9.19 11.10 12.14 12.70	- - - - - - -	PS PSLB PSLBE - - - -	PS PSLB PLB PLB PLB - -	- - PLB PLB PLB PLB PLB	- - PLB PLB PLB PLB PLB	- - PLB PLB PLB PLB PLB	- - PLB PLB PLB PLB PLB	- - - PLB PLB PLB PLB
5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2	14.00 15.50 17.00 20.00 23.00 26.80 29.70 32.60 35.30 38.00 40.50 43.10	139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70	20.83 23.07 25.30 29.76 34.23 39.88 44.20 48.51 52.53 56.55 60.27 61.14	6.20 6.98 7.72 9.17 10.54 12.70 14.27 15.88 17.45 19.05 20.62 22.22	PS - - - - - - - - - - -	PS PSLBE PSLBE - - - - - - - - -	PS PSLB PLB PLB PLB - - - - - - -	- - PLBE PLBE PLBE - - - - - - -	- - PLBE PLBE PLBE - - - - - - -	- - PLBE PLBE PLBE P P P P P P P	- - PLBE PLBE PLBE - - - - - - -	- - - - PLBE - - - - - - -
6-5/8 6-5/8 6-5/8 6-5/8	20.00 24.00 28.00 32.00	168.28 168.28 168.28 168.28	29.76 35.72 41.67 47.62	7.32 8.94 10.59 12.06	PS - - -	PSLB PSLBE - -	PSLB PLB PLB -	- PLBE PLBE PLBE	- PLBE PLBE PLBE	- PLBE PLBE PLBE	- PLBE PLBE PLBE	- - - PLBE
7 7 7 7 7 7 7	17.00 20.00 23.00 26.00 29.00 32.00 35.00	177.80 177.80 177.80 177.80 177.80 177.80 177.80	25.30 29.76 34.23 38.69 43.16 47.62 52.09	5.87 6.91 8.05 9.19 10.36 11.51 12.65	PS PS - - - - -	- PS PSLBE PSLBE - - -	- PS PLB PLB PLB PLB -	- - PLB PLB PLB PLB PLB	- - PLB PLB PLB PLB PLB	- - PLB PLB PLB PLB PLB	- - - PLB PLB PLB PLBE	- - - - - - PLB
7 7 7 7 7 7	38.00 42.70 46.40 50.10 53.60 57.10	177.80 177.80 177.80 177.80 177.80 177.80	56.55 63.54 69.05 74.56 79.77 84.97	13.72 15.88 17.45 19.05 20.62 22.22	- - - - - -	- - - - - -	- - - - - -	PLB - - - - -	PLB - - - - -	PLB P P P P P	PLB - - - - -	PLB - - - - -
7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8	24.00 26.40 29.70 33.70 39.00 42.80 45.30 47.10 51.20 55.30	193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68	35.72 39.29 44.20 50.15 58.04 63.69 67.41 70.09 76.19 82.30	7.62 8.33 9.52 10.92 12.70 14.27 15.11 15.88 17.45 19.05	PS - - - - - - - - -	- PSLB - - - - - - - -	- PSLB PLB PLB - - - - - -	- PLB PLB PLB PLB PLB PLB PLB - -	- PLB PLB PLB PLB PLB PLB PLB - -	- PLB PLB PLB PLB PLB PLB PLB P P	- - PLB PLB PLB PLB PLB PLB - -	- - - - PLB PLB PLB PLB - -
7-3/4	46.10	196.85	68.60	15.11	-	-	-	P	P	P	P	P
8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8	24.00 28.00 32.00 36.00 40.00 44.00 49.00	219.08 219.08 219.08 219.08 219.08 219.08 219.08	35.72 41.67 47.62 53.57 59.53 65.48 72.92	6.71 7.72 8.94 10.16 11.43 12.70 14.15	- PS PS - - - -	PS PS - PSLB PSLB PLB -	PS PS PSLB PSLB PLB - -	- - - PLB PLB PLB PLB	- - - PLB PLB PLB PLBE	- - - PLBE PLBE PLBE PLBE	- - - PLB PLB PLB	- - - - - PLB
9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8	32.30 36.00 40.00 43.50 47.00 53.50 58.40 59.40 64.90 70.30 75.60	244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48	48.07 53.57 59.53 64.73 69.94 79.62 86.91 88.40 96.58 104.62 112.50	7.92 8.94 10.03 11.05 11.99 13.84 15.11 15.47 17.07 18.64 20.24	PS PS - - - - - - - - -	- PSLB PSLB - - - - -	- PSLB PSLB PLB PLB - - - - -	- - PLB PLB PLB PLB PLB - - - -	- - PLB PLB PLB PLB PLB - - -	- - PLB PLB PLB PLB PLB P P P P	- - - PLB PLB PLB PLB - - - -	- - - - PLB PLB PLB - - - -
10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4	32.75 40.50 45.50 51.00 55.50 60.70 65.70 73.20 79.20 85.30	273.05 273.05 273.05 273.05 273.05 273.05 273.05 273.05 273.05 273.05	48.74 60.27 67.71 75.90 82.59 90.33 97.77 108.93 117.86 126.94	7.09 8.89 10.16 11.43 12.57 13.84 15.11 17.07 18.64 20.24	PS PS - - - - - - - -	- PSB PSB PSB - - - - - -	- PSB PSB PSB PSB - - - - -	- - - PSB PSB - - - - -	- - - PSB PSB - - - - -	- - - PSB PSB PSB PSB P P P	- - - PSB PSB PSB PSB - - -	- - - - - PSB PSB - - -
11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4	42.00 47.00 54.00 60.00 65.00 71.00	298.45 298.45 298.45 298.45 298.45 298.45	62.50 69.94 80.36 89.29 96.73 105.66	8.46 9.53 11.05 12.42 13.56 14.78	PS - - - - -	- PSB PSB PSB - -	- PSB PSB PSB - -	- - - PSB P P	- - - PSB P P	- - - PSB P P	- - - PSB P P	- - - PSB P P
13-3/8 13-3/8 13-3/8 13-3/8 13-3/8	48.00 54.50 61.00 68.00 72.00	339.72 339.72 339.72 339.72 339.72	71.43 81.10 90.78 101.19 107.15	8.38 9.65 10.92 12.19 13.06	PS - - - -	- PSB PSB PSB -	- PSB PSB PSB -	- - - PSB PSB	- - - PSB PSB	- - - PSB PSB	- - - PSB PSB	- - - - PSB
16 16 16 16	65.00 75.00 84.00 109.00	406.40 406.40 406.40 406.40	96.73 111.61 125.01 162.21	9.53 11.13 12.57 16.66	PS - - -	- PSB PSB P	- PSB PSB -	- - - P	- - - P	- - - -	- - - P	- - - P
18-5/8	87.50	473.08	130.21	11.05	PS	PSB	PSB	-	-	-	-	-
20 20 20	94.00 106.50 133.00	508.00 508.00 508.00	139.89 158.49 197.93	11.13 12.70 16.13	PSL - -	PSLB PSLB PSLB	PSLB PSLB -	- - -	- - -	- - -	- - -	- - -
P=Plain end; S=short round thread; L=Long round thread; B--Buttress thread;
a: Labels are for information and assistance in ordering. b: Nominal linear masses (col. 4) are shown for information only. c: The densities of martensitic chromium steels (L80 Types 9Cr and 13Cr) are different from carbon steels. The masses shown are therefore not accurate for martensitic chromium steels. A mass correction factor of 0.989 may be used. d: Buttress casing i s available with regualr, special clearance coupings or special clearance couplings with special bevel.
