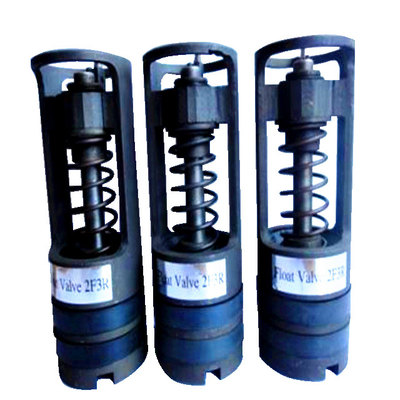

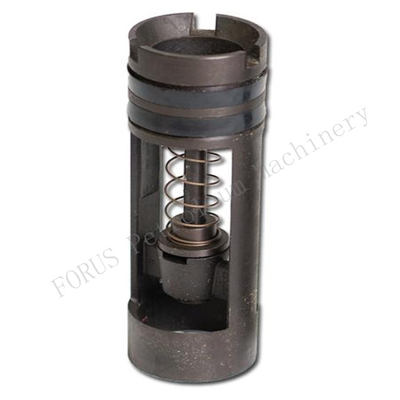

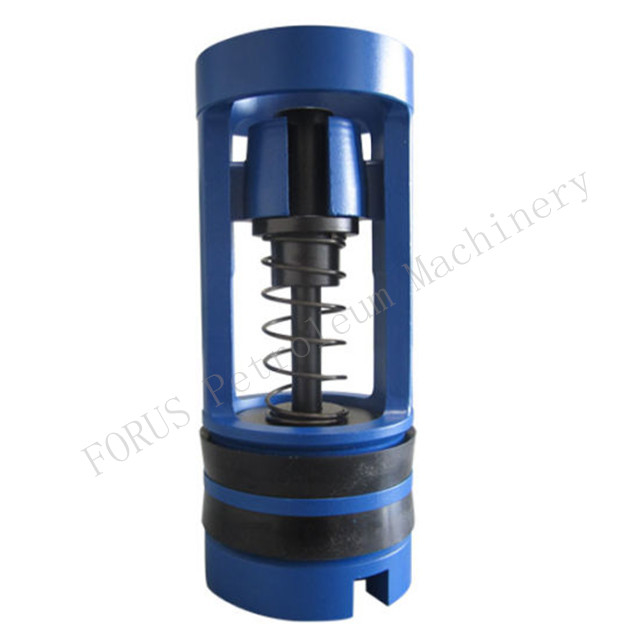

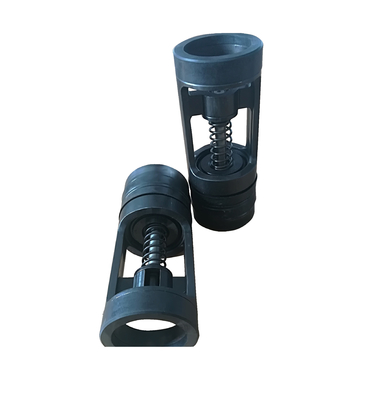

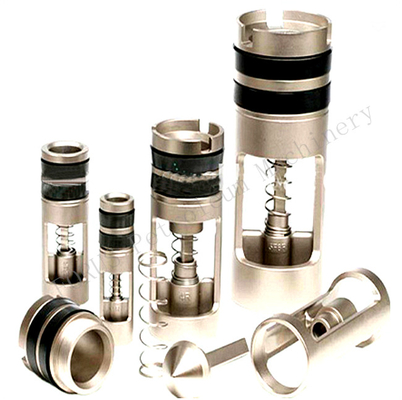

Stainless Steel Drill Pipe Float Valve F Series And G Series

Stainless Steel Drill Pipe Float Valve F Series And G Series
Stainless Steel Drill Pipe Float Valve F Series And G Series Stainless Steel Drill Pipe Float Valve F Series And G Series Stainless Steel Drill Pipe Float Valve F Series And G Series Stainless Steel Drill Pipe Float Valve F Series And G Series Stainless Steel Drill Pipe Float Valve F Series And G Series

Large Image :  Stainless Steel Drill Pipe Float Valve F Series And G Series

Product Details:
Place of Origin: China
Brand Name: FORUS
Certification: API
Model Number: F&G
Payment & Shipping Terms:
Minimum Order Quantity: 10Pieces
Packaging Details: Wooden Box
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month

Stainless Steel Drill Pipe Float Valve F Series And G Series

Description
Product Name: Drill Pipe Float Valve Material: Stainless Steel
Processing: Forging Industry: Oil Drilling
High Light:

Stainless Steel drill pipe float valve

,

F Series Drill Pipe Float Valve

,

G Series float valve drilling

Drilling Casing Pipe Model F&G Type Drill Pipe Float Valve Oilfield



Product Description



Series: F (FA , FC, FI, FS & FSA) & G (GA, GC, GCA, GS & GSA)



Size: 1R • 1F2R • 2F3R • 3F • 3-1/2IF • 4R • 4F • 5R • 5F6R • 6F



Application


Singho has a complete float valve production line, which can provide Float Valves, Repair Kits, and Puller Assemblies to accommodate a wide range



of drilling conditions, including H2S and Hi-Temperature Service.


The drill pipe float valves provide a blowout protection at the bottom of the drillstring, which can prevent backflow and blockage of the drill bit while



making connections.


Model F and G Drill Pipe Float Valves rated 5000 psi - 15000 psi WP. The Drill Pipe Float Valves are suitable for Standard, H2S and Hi-Temp



Service. (Please specify the service requirements when ordering.)



Stainless Steel Drill Pipe Float Valve F Series And G Series 0

Model F And G Pipe Float Valve (Dimension Data)
Valve Size D Dia. Of Valve (in.) R (D+1/32) Dia. Of Recess for Valve(in.) L Length of Valve (in.)
1R 1-21/32 1-11/16 5-7/8
1F-2R 1-29/32 1-15/16 6-1/4
2F-3R 2-13/32 2-7/16 6-1/2
3F 2-13/16 2-27/32 10
3-1/2F 3-1/8 3-5/32 10
4R 3-15/32 3-1/2 8-5/16
4F 3-21/32 3-11/16 12
5R 3-7/8 3-29/32 9-3/4
5F-6R 4-25/32 4-13/16 11-3/4
6F 5-11/16 5-23/32 14-5/8



Seal

Application Standard H2S Hi-Temp
Material NBR HNBR Viton
Temperature 100℃(212℉) 149℃(300℉) 204℃(400℉)

Stainless Steel Drill Pipe Float Valve F Series And G Series 1
