Product Details:
|
| Product Name: | Suction/Discharge Manifold | Model: | F-1600 |
|---|---|---|---|
| Material: | 35CrMo/Customized | Condition: | Brand New |
| Industry: | Oil Drilling | Precess: | Cast |
| High Light: | BOMCO Mud Pump Parts,F-1600 Mud Pump Parts,Suction discharge manifold |
||

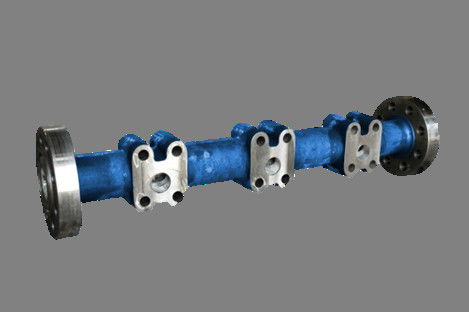

Mud Pump Parts Manifold Used For BOMCO F-1600 Mud Pump
Mud Pump Part List
| Item | Product Description | Mud Pump Model | Part No. |
| 1 | Hydraulic cylinder assembly | F-1300/F-1600 | AH130102050100 |
| 2 | Cylinder head flange | F-1300/F-1600 | AH1301010502 |
| 3 | Cylinder head | F-1300/F-1600 | AH1301010503 |
| 4 | Plug board assembly | F-1300/F-1600 | AH130101050400 |
| 5 | Valve rod guides(lower) | F-1300/F-1600 | AH130101050500 |
| 6 | Cylinder head plug | F-1300/F-1600 | AH130101050600 |
| 7 | Positioning plate | F-1300/F-1600 | AH1301010507 |
| 8 | Cylinder head gasket | F-1300/F-1600 | AH1301010508 |
| 9 | Discharge manifold | F-1300/F-1600 | AH1301010509 |
| 10 | Valve spring | F-1300/F-1600 | AH00000101 |
| 11 | Valve assembly API 7 through-hole | F-1300/F-1600 | AH0000020300 |
| 12 | Valve cover sealing ring | F-1300/F-1600 | AH1301010510 |
| 13 | Valve cover | F-1300/F-1600 | AH1301020502 |
| 14 | Cylinder liner seal | F-1300/F-1600 | AH1301010512 |
| 15 | Wearing plate | F-1300/F-1600 | AH1301020503 |
| 16 | Cylinder liner flange | F-1300/F-1600 | AH1301010514 |
| 17 | Cylinder liner gland | F-1300/F-1600 | AH130101051500 |
| 18 | Piston rod | F-1300/F-1600 | AH1301020504 |
| 19 | Adapter NPT3/8 | F-1300/F-1600 | AH130102050500 |
| 20 | Cylinder liner lock ring | F-1300/F-1600 | AH1301010518 |
| 21 | Bi-metal cylinder liner | F-1300/F-1600 | AH130102051200 |
| 22 | Clamp assembly | F-1300/F-1600 | AH130102050600 |
| 23 | Elbow NPT3/8-M22X1.5 | F-1300/F-1600 | AH1301020507 |
| 24 | Cylinder end cover | F-1300/F-1600 | AH1301010520 |
Supply Mud Pump Parts Brand
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
