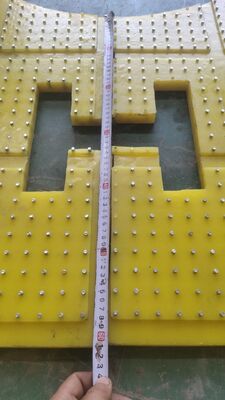

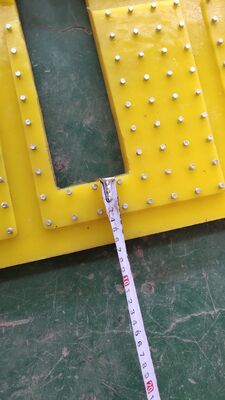

Oil Resistance Rotary Table Anti Slip Mat Strict Quality Inspection Polyurethane 30mm Thickness
We always guarantee reliable quality and offer competitive prices. We strictly supervise every production process, including incoming material inspection,
preliminary processing, finish machining, appearance and dimension testing. We strive to deliver satisfactory products to clients.
Product Description

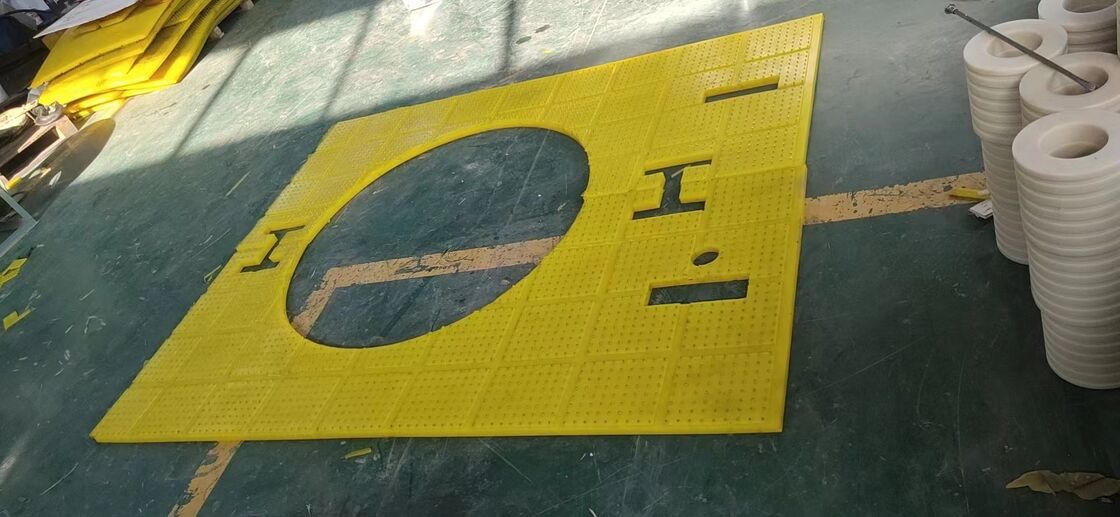

Drilling platform anti slip mat is a kind of rubber pad for drilling rig turntable and platform used in oil field,
mining and engineering construction. It is composed of steel nails and rubber layer, and is divided into ordinary
rubber and polyurethane rubber. This new type of anti slip mat has a more significant anti-slip protection effect.
Our Advantages:
1.Made of carefully selected raw materials and processed with elaborate workmanship, our products feature stable performance, excellent resistance to acid, alkali, abrasion and corrosion, as well as long service life.
2.Strict quality inspection is implemented throughout production to free customers from worries.
3.We offer complete specifications and customized services upon request.
Specific parameter:
Standard ZP-175, ZP-275, ZP-375, ZP-205
- Yellow, it’s safe warning sign.

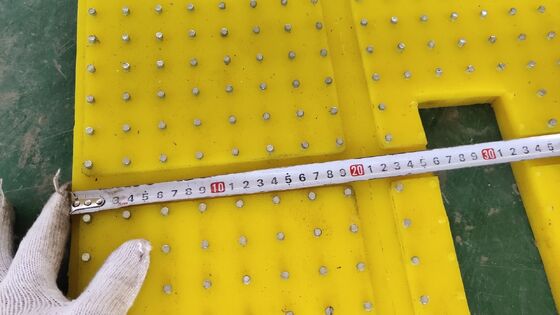

- Thickness: 30mm
- Material:PU
- Characteristics: Obviously anti-slip effection, with oil channel, can effectively discharge oil and mud, anti-slip mat appearance is beautiful with the color of yellow safety warning mark.
-
Characteristics: Obviously anti-slip effection, with oil channel, can effectively discharge oil and mud, anti-slip mat appearance is beautiful with the color of yellow safety warning mark.
Technical Parameter
| Product Name |
1042 PU |
|
Operation process
|
NCO% Content |
4.2±0.2 |
| State of matter(20℃) |
White waxy object |
| 100g prepolymer MOCA dosage(g) |
12 |
| Viscosity(85℃/MPa • S) |
1100 |
|
Mixing temperature
(℃)prepolymer/ MOCA
|
80/ 120 |
| Gel time(min) |
8- 12 |
| Post-curing time(h/ 110℃) |
16-24 |
|
Physical index
|
Hardness (SHAO A) |
90±2 |
| 100% stress at definite elongation(MPa) |
8 |
| |
300% stress at definite elongation(MPa) |
22 |
| |
Tensile strength(MPa) |
45 |
| |
Elongation at break(%) |
520 |
| |
Right-angled tearing strength(KN/m) |
95 |
| |
Pants type tear strength(KN/m) |
32 |
| |
Springback(%) |
28 |
| |
Akron abrasion(cm³) |
0.02 |
Shaanxi FORUS Petroleum Machinery Equipment Co., Ltd is a professional supplier of oil drilling machinery and equipment with 6 years experience.
We have obtained the ISO9001 quality certificate.
Our products have been exported to Russia, Kazakhstan, Kuwait, UAE, Iraq, Indonesia, Malaysia, Brazil, France, Canada, and some other countries and regions.
Our superior products and considerate services have won high praise from customers all over the world.
