Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion

Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion
Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion

Large Image :  Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion

Product Details:
Place of Origin: China
Brand Name: FORUS
Certification: ISO9001
Model Number: ZP275
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Wooden Box
Delivery Time: 7 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 90 Sets Per Month
Contact Now

Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion

Description
Product Name: Rotary Table Anti Slip Mat Material: PU
Thickness: 30mm Size: ZP275
Colour: Yellow Application: Rotary Table

Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion



Product Description

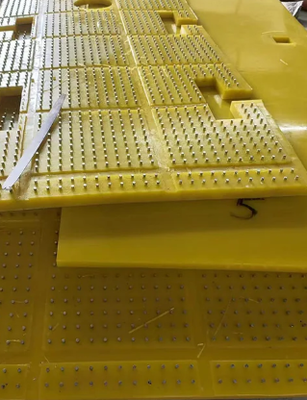

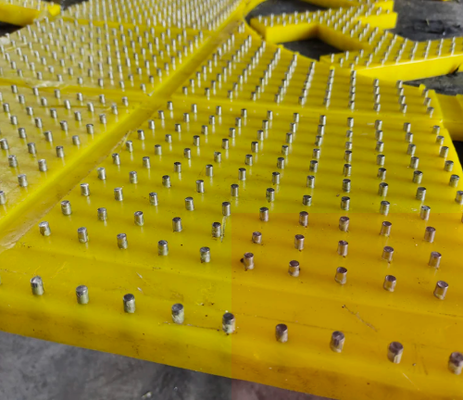

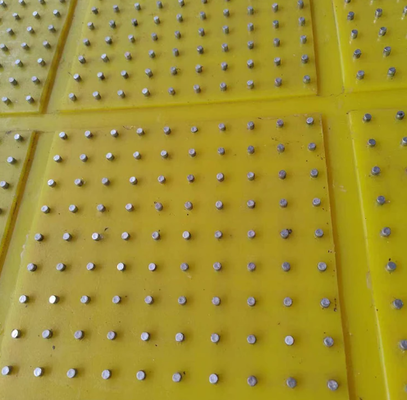

Drilling platform anti slip mat is a kind of rubber pad for drilling rig turntable and platform used in oil field,
mining and engineering construction. It is composed of steel nails and rubber layer, and is divided into ordinary
rubber and polyurethane rubber. This new type of anti slip mat has a more significant anti-slip protection effect.





Our Advantages:



1.Made of carefully selected raw materials and processed with elaborate workmanship, our products feature stable performance, excellent resistance to acid, alkali, abrasion and corrosion, as well as long service life.



2.Strict quality inspection is implemented throughout production to free customers from worries.



3.We offer complete specifications and customized services upon request.



Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion 0Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion 1Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion 2Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion 3

Specific parameter:



Standard ZP-175, ZP-275, ZP-375, ZP-205

  1. Yellow, it’s safe warning sign.
  2. Thickness: 30mm
  3. Material:PU
  4. Characteristics: Obviously anti-slip effection, with oil channel, can effectively discharge oil and mud, anti-slip mat appearance is beautiful with the color of yellow safety warning mark.

  5. Characteristics: Obviously anti-slip effection, with oil channel, can effectively discharge oil and mud, anti-slip mat appearance is beautiful with the color of yellow safety warning mark.



Technical Parameter



Product Name 1042 PU











Operation process

 NCO% Content 4.2±0.2
State of matter(20℃) White waxy object
100g prepolymer MOCA dosage(g) 12
Viscosity(85℃/MPa • S) 1100

Mixing temperature

(℃)prepolymer/ MOCA

 80/ 120
Gel time(min) 8- 12
Post-curing time(h/ 110℃) 16-24



Physical index

 Hardness (SHAO A) 90±2
100% stress at definite elongation(MPa) 8
  300% stress at definite elongation(MPa) 22
  Tensile strength(MPa) 45
  Elongation at break(%) 520
  Right-angled tearing strength(KN/m) 95
  Pants type tear strength(KN/m) 32
  Springback(%) 28
  Akron abrasion(cm³) 0.02
