Rotary Table Anti Slip Mat with 84"X67" Size Protruding Rivets and Sewage Groove Design for Enhanced Safety

Rotary Table Anti Slip Mat with 84"X67" Size Protruding Rivets and Sewage Groove Design for Enhanced Safety
Rotary Table Anti Slip Mat with 84"X67" Size Protruding Rivets and Sewage Groove Design for Enhanced Safety Rotary Table Anti Slip Mat with 84"X67" Size Protruding Rivets and Sewage Groove Design for Enhanced Safety

Large Image :  Rotary Table Anti Slip Mat with 84"X67" Size Protruding Rivets and Sewage Groove Design for Enhanced Safety

Product Details:
Place of Origin: China
Brand Name: FORUS
Certification: ISO9001
Model Number: ZP275
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Wooden Box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 90 Sets Per Month
Contact Now

Rotary Table Anti Slip Mat with 84"X67" Size Protruding Rivets and Sewage Groove Design for Enhanced Safety

Description
Product Name: Rotary Table Anti Slip Mat Material: PU
Thickness: 30mm Size: 84"X67"
Colour: Yellow Application: Rotary Table
Highlight:

84"X67" Size Rotary Table Anti Slip Mat

,

Protruding Rivets Rotary Table Anti Slip Mat

,

Sewage Groove Design Rotary Table Anti Slip Mat

Rotary Table Anti Slip Mat For Rotary Table Material PU Wear-Resisting



Product Description

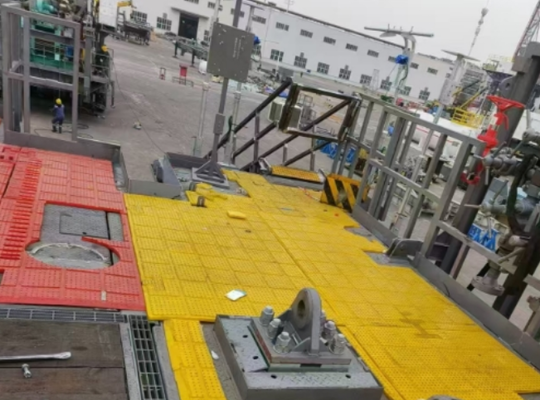

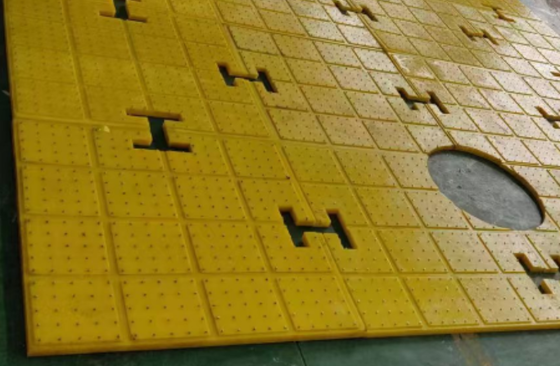

Drilling platform anti slip mat is a kind of rubber pad for drilling rig turntable and platform used in oil field,
mining and engineering construction. It is composed of steel nails and rubber layer, and is divided into ordinary
rubber and polyurethane rubber. This new type of anti slip mat has a more significant anti-slip protection effect.

Rotary Table Anti Slip Mat with 84"X67" Size Protruding Rivets and Sewage Groove Design for Enhanced Safety 0



Features:
1. Polyurethane rubber material, high strength, high wear resistance, oil resistance and aging resistance.
2. Protruding rivets or rubber particles can increase friction and play a non-slip effect.
3. The vertical and horizontal sewage groove design enables the effective discharge of oil and water.
4. Elastic rubber base material to protect the drill disc and rig and prolong its service life.

Rotary Table Anti Slip Mat with 84"X67" Size Protruding Rivets and Sewage Groove Design for Enhanced Safety 1



Specific parameter:



Standard ZP-175, ZP-275, ZP-375, ZP-205

  1. Yellow, it’s safe warning sign.
  2. Thickness: 30mm25mm
  3. Material:PU
  4. Characteristics: Obviously anti-slip effection, with oil channel, can effectively discharge oil and mud, anti-slip pad appearance is beautiful with the color of yellow safety warning mark.
  5. We could accept customized.

  6. Characteristics: Obviously anti-slip effection, with oil channel, can effectively discharge oil and mud, anti-slip pad appearance is beautiful with the color of yellow safety warning mark.



Technical Parameter



Product Name 1042 PU











Operation process

 NCO% Content 4.2±0.2
State of matter(20℃) White waxy object
100g prepolymer MOCA dosage(g) 12
Viscosity(85℃/MPa • S) 1100

Mixing temperature

(℃)prepolymer/ MOCA

 80/ 120
Gel time(min) 8- 12
Post-curing time(h/ 110℃) 16-24



Physical index

 Hardness (SHAO A) 90±2
100% stress at definite elongation(MPa) 8
  300% stress at definite elongation(MPa) 22
  Tensile strength(MPa) 45
  Elongation at break(%) 520
  Right-angled tearing strength(KN/m) 95
  Pants type tear strength(KN/m) 32
  Springback(%) 28
  Akron abrasion(cm³) 0.02
