Product Details:
|
| Product Name: | Rotary Table | Model: | ZP205 |
|---|---|---|---|
| Material: | Steel | Standard: | API |
| Opening Dia.: | 20 1/2 Inch | Max.static Load KN: | 3150 |
| Max.working Rorque KN.m: | 22.5 | Max.speed Pm: | 300 |
| Highlight: | API Standard Drilling Rig Components,ZP205 Rotary Table Drilling Rig Components,Oilfield Drilling Rig Components |
||

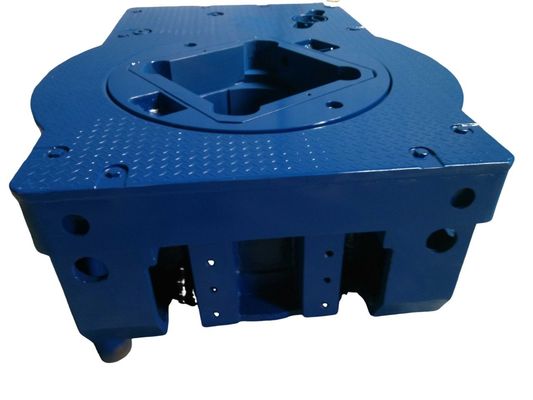

ZP205 Rotary Table Drilling Rig Components API Standard For Oilfield Drilling
Rotary Tablee Feature
·Conform to the standard of API 7k
· The rotary table adopts arc gear and bevel gear to have feature of powerfully bearing,balanced moving and long life
·The house of the rotary table has cast-welding structure with good rigidity and high accuracy
The gears and bearings have splash grease with reliable lubrication
The input axle is a core structure convenient for maintenance and service
·Ambient temperature:-20℃~55℃
-45℃~40℃
| 型号 Model |
通孔直径 Opening dia. m(in) |
最大静负荷 Max.static load KN |
额定扭矩 Max.working rorque kN.m |
转盘中心与链轮内排齿中心线 的距离 Dist.from table ctr.to teeth ctr.of inner sprocket mm(in) |
最高转速 Max.speed pm |
齿轮传动比 Gear ration |
中心高 Center height mm |
外形尺寸 Dimensions (L×W×H)mm |
重量 Weight KG |
||
| ZP135 | 315 (131/2') |
1350 | 12 | 1118 (44) |
300 | 3.5 | 160 | 1705×1070× 378 |
1840 | ||
| ZP175 | 44.5 (171/2’) |
2700 | 14 | 1118 (44) |
300 | 3.58 | 270 | 1902 ×1280× 575 |
3890 | ||
| ZP205 | 520.7 (201/2') |
3150 | 22.5 | 1353 (531/4') |
300 | 3.62 | 318 | 2309×1475× 668 |
5530 | ||
| ZP275 | 698.5 (271/2’) |
4500 | 27.5 | 1353 (531/4') |
300 | 3.67 | 330 | 2417×1680× 86 |
6773 | ||
| ZP375 | 052.5 (371/2') |
5850 | 32.36 | 1353 (531/4’) |
300 | 3.56 | 330 | 2468×1810× 718 |
8026 | ||
| ZP495 | 57.3 (491/2') |
9000 | 64.4 | 651 65 |
300 | 3.96 | 368 | 015 ×2254× 319 |
11626 | ||
| ZP520 | 520.7 (201/2') |
1960 | 22.5 | 1353 (531/4') |
300 | 3.22 | 318 | 2238×1440× 705 |
4500 | ||
