Swivel Model SL135 API 7K Forging Drilling Rig Working Pressure 35MPa

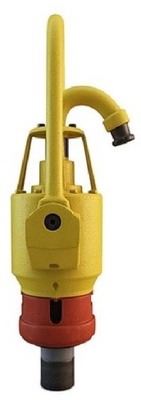

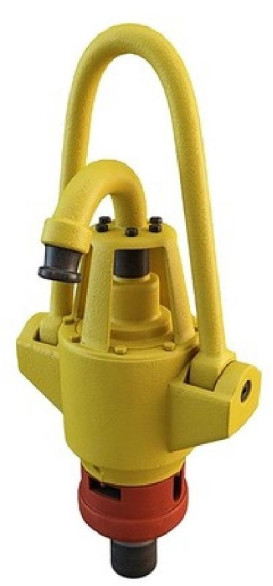

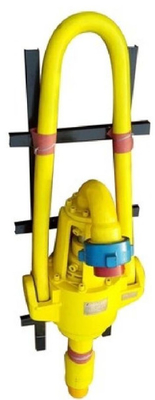

Large Image : Swivel Model SL135 API 7K Forging Drilling Rig Working Pressure 35MPa

Product Details:

Place of Origin:	China
Brand Name:	FORUS
Certification:	API 7K
Model Number:	SL-135

Payment & Shipping Terms:

Minimum Order Quantity:	1Sets
Packaging Details:	Standard
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union

Contact Now

Swivel Model SL135 API 7K Forging Drilling Rig Working Pressure 35MPa

Description

Product Name:	Swivel	Model:	SL1335
Max Working Pressure:	35MPa	Max Static Load Rating:	1350KN
Max Recommended Speed:	300 R/min	Port:	Shanghai
Highlight:	API 7K Drilling Rig , Swivel Model SL135 , 35MPa Drilling Rig

Swivel Model SL135 API 7K Forging Drilling Rig Working Pressure 35MPa

Product Description

· In accordance with API7K

·Pulling out or feeding off string can be done while rotating

·Integral construction

·Easy to install and maintain

·Low friction

Model	Max.static load rating (KN)	Max recommended speed(r/min)	Max.working pressure(Mpa	I.D.of stem mm(in)	Sub thread type to stem (API)in	Sub thread type to kelly (API)in	Overall dimensions(Lx WxH)(mm)	Weight (kg)


SL90	900	300	25	64(2-1/2)	4-1/2"REG LH	6-5/8"REG LH	2505×758×840	940

SL135	1350	300	35	75(3)	4-1/2"REG LH	6-5/8"REG LH	520x758x840	1341


SL225	2250	300	35	75(3)	6-5/8"REG LH	6-5/8"REG LH	2880x1026 x820	2246
SL250	2500	300	35	75(3)	6-5/8"REG LH	6-5/8"REG LH	2880x1026 x820	2246
SL450	4500	00	35	75(3)	7-5/8”REG LH	6-5/8"REG LH	3015x1096 x960	2700
