DG225 Hook For Drilling Rig Components API 8A Standard Max Hook Load 2250

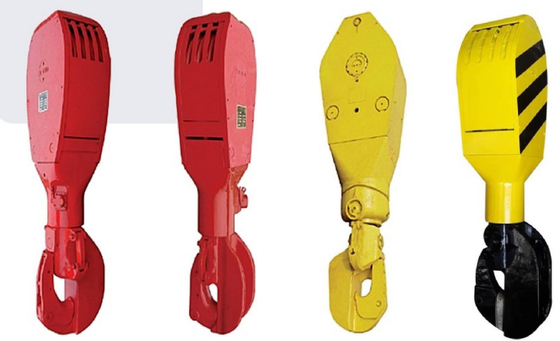

Large Image : DG225 Hook For Drilling Rig Components API 8A Standard Max Hook Load 2250

Product Details:

Place of Origin:	China
Brand Name:	FORUS
Certification:	API 8A
Model Number:	DG225

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Wooden Box
Delivery Time:	20 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	12Sets Per Month

Contact Now

DG225 Hook For Drilling Rig Components API 8A Standard Max Hook Load 2250

Description

Product Model:	DG225 Hook	Max Load:	2250 KN
Main Hook Opening Size:	190mm	Spring Travel:	180mm
Application:	Oilfield Drilling	COC:	Provide
Highlight:	API 8A Standard Hook , Drilling Rig Components Hook , 2250 Max Hook Load

DG225 Hook For Drilling Rig Components API 8A Standard Max Hook Load 2250

Hook Feature

· In accordance with API8A standard

·Especially built-in hollow with good hydro bump-absorbing capability.

·The major hook has double safety devices testing.

·Ambient temperature:-20℃~55℃"

-45℃~40℃

Model	Max hook load (kN)	Mainhook opening size mm (in)	Spring travel mm (in)	Size	Weight

DG225	2250	190(71/2)	180(7)	2545780750	2180
DG315	3150	220(85/8)	200 (8)	2960890830	3410
DG450	4500	220 (85/8)	200 (8)	2960890880	3500
DG675	6750	234(91/4)	220 (85/8)	37051210930	7065

DG900	9000	385(151/6)	200 (8)	471013301300	12100
