Travelling Block Model YC450 Drilling Rig Components API Standard

Large Image : Travelling Block Model YC450 Drilling Rig Components API Standard

Product Details:

Place of Origin:	China
Brand Name:	FORUS
Certification:	API
Model Number:	YC450

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Wooden Box
Delivery Time:	20 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	12Sets Per Month

Contact Now

Travelling Block Model YC450 Drilling Rig Components API Standard

Description

Product Model:	YC450 Traveling Block	Max Load:	4500
Sheave OD:	1524mm	Wireline Dia.:	3538mm
Port:	Guangzhou	Application:	Oilfield Drilling
Highlight:	API Standard Travelling Block , YC450 Drilling Rig Components , Drilling Rig Components Travelling Block

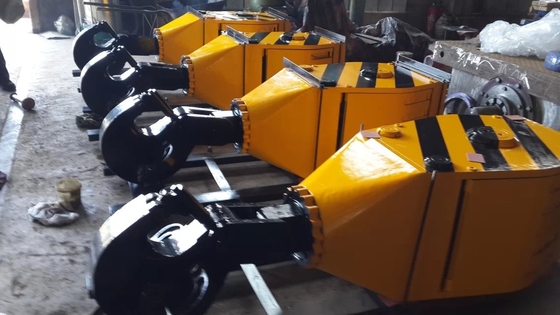

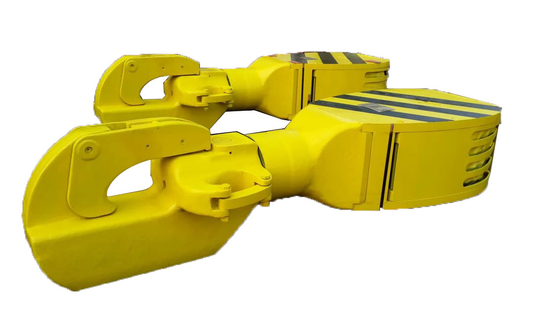

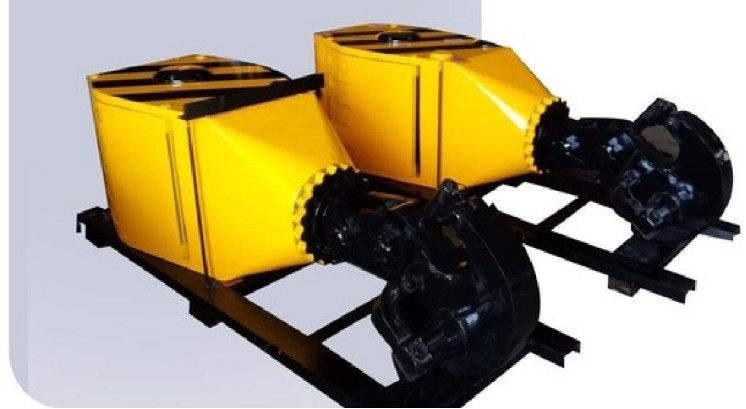

Travelling Block Model YC450 Drilling Rig Components API Standard

·Feature

· In accordance with the standard of API8A&8C.

· "The sheave rope groove through quenched processing with wear resistance

long-life.

"Sheaves and bearings can be exchangeable by allocated crown sheaves and their

bearings.

·Ambient temperature:-20℃~55℃

-45℃~40℃

Travelling Block Model

Model	Max.hook load kN	Qty.of sheaves	Sheave 0.D. (mm)	Diameter of wire line (mm)	Overall size	Weight KG


YC170	1700	5	915	29	2000x1004x630	2790
YC225	2250	5	1120	2,932	2294x1190x630	3805
YC315	3150	6	1270	3,235	2580x1350x800	6842
YC450	4500	6	1524	3,538	3075x1600x800	8135
YC675	6750	7	1524	45	3010x1605x980	9738
YC900	9000	7	1830	52	3740x1920x1280	18225
