Product Details:
|
| Product Name: | Annular BOP | Size: | 11" |
|---|---|---|---|
| Pressure: | 3000PSI | Test Report: | Provide |

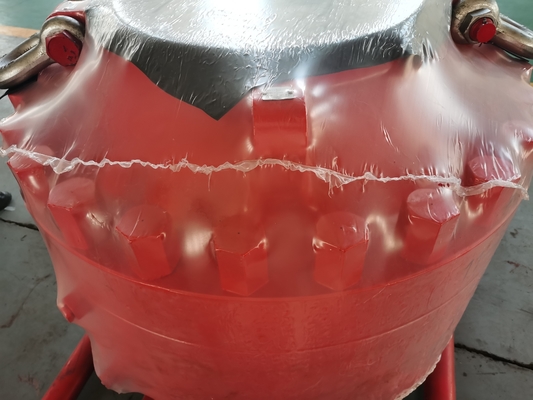

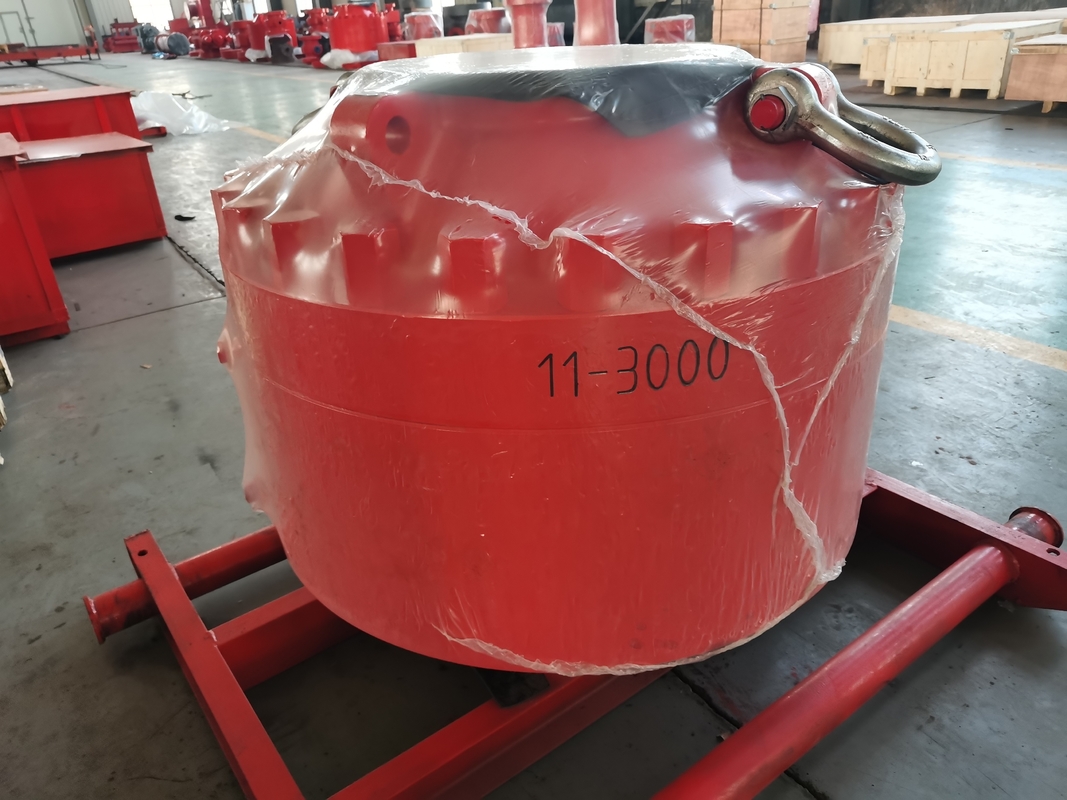

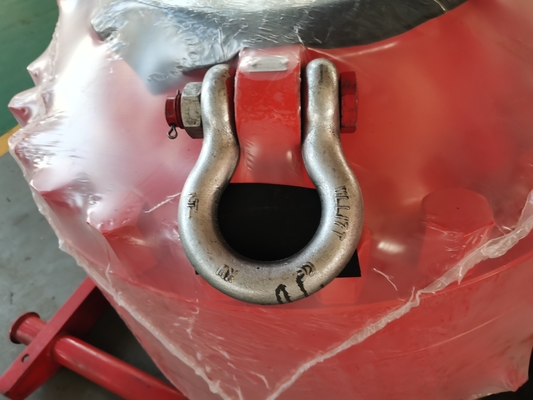

RONGSHENG 11 Inch Annular BOP Blowout Preventer 3000 PSI Equipment
Product Feature of Blowout Preventer Equipment
● Rubber core store glue big quantity , small friction resistance, when switch pressure sealing ability.
● Using hemispherical head, no stress concentration phenomenon when under pressure, casing stress evenly, easy to tear open outfit.
● Piston stroke is short, low height, and set the wear ring.
● The lip seal, long service life.
● Low temperature processing annular blowout preventer shell diameter has a trough steam pipe, pipe ventilation with saturated vapor, round
shell for heating.
● High sulfate-resistant blowout preventer internal all parts contact well liquid surfacing high nickel base alloy, can achieve the highest levels of
resistance to effect such as H2S and CO2.
Annular BOP element specification& Model
|
Working pressure MPa(psi) |
Main bore mm(in) |
|||||||||
| 179.4-7 1/16 | 228.6-9 | 279.4-11 | 346.1-13 5/8 | 425-16 3/4 | 476-18 3/4 | 527-20 3/4 | 539.8-21 1/4 | 749.3-29 1/2 | 762-30 | |
| 3.5(500) | — | — | — | — | — | — | — | — | — | — |
| 7(1000) | — | — | — | — | — | — | — | — | — | ● |
| 14(2000) | — | — | — | — | — | — | — | — | — | — |
| 21(3000) | ● | ● | ● | ● | — | — | — | — | — | — |
| 35(5000) | ● | ● | ● | ● | ● | — | — | — | — | — |
| 70(10000) | ● | — | ● | ● | — | ● | — | — | — | — |
Spherical type annular bop and packing element specification
| Model | Main bore mm(in) |
Working pressure MPa(psi) |
Operating Pressure MPa | Connection type | Dimensionmm mm | weight kg | Recommended bop code | ||
| Top | Bottom | Outside diameter | Height | ||||||
| FH18-21 | 179(7 1/16) | 21(3000) | 8.4～10.5 | studded | fanged | 737 | 743 | 1350 | FH1821NL-00 |
| FH18-35 | 35(5000) | 737 | 790 | 1572 | FH1835NL-00 | ||||
| FH18-70/105 | 70(10000) | 1092 | 1136 | 5070 | H09.00 | ||||
| FH23-21 | 228(9) | 21(3000) | 900 | 830 | 2104 | FH2321-00 | |||
| FH23-35 | 35(5000) | 998 | 1200 | 3540 | H14.00 | ||||
| FH28-21 | 279(11) | 21(3000) | 1013 | 838 | 2574 | FH2821NL-00 | |||
| FH28-35 | 35(5000) | 1138 | 1081 | 4410 | FH2835-00 | ||||
| FH28-35/70 | 35(5000) | 1138 | 1096 | 4451 | FH2835/70-00 | ||||
| FH28-70/105 | 70(10000) | 1448 | 1420 | 10800 | FH2870/105-00 | ||||
| FH35-35 | 346(13 5/8) | 35(5000) | 1270 | 1160 | 6400 | FH3535-00 | |||
| FH35-35/70 | 35(5000) | 1270 | 1227 | 6843 | FW1305-00A | ||||
| FH35-70/105 | 70(10000) | 1640 | 1664 | 15110 | FH3570-00 | ||||
| FH43-35 | 425(16 3/4) | 35(5000) | 1524 | 1320 | 10834 | H24.00 | |||
| FH48-70 | 476(18 3/4) | 70(10000) | 1937 | 1882 | 27161 | H26.00 | |||
