Product Details:
|
| Bore Size Range: | 1-13/16"~7-1/16" | Rated Pressure: | 2000PSI~20000PSI |
|---|---|---|---|
| Temperature: | –46°C ~ +121°C(LU Grade) | Performance Level: | PR1-2 |
| Standard: | API SPEC 6A & NACE MR 0175 | Operating Mode: | Manual, Pneumatic, Electric And Hydraulic |
| Application: | Wellhead Equipment; Christmas Tree；Manifold | Industry: | Oilfield Drilling |
| High Light: | 2-1/16 Inch Hand Plate Valve,Oilfield Drilling Manifold Valve,10000PSI Wellhead Manifold Valve |
||

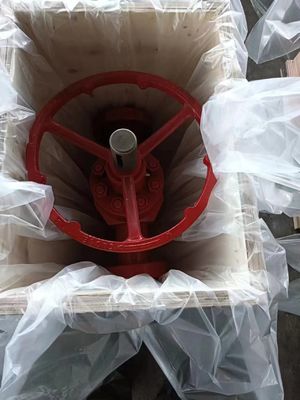

Hand Plate Valve 2-1/16 Inch Pressure 10000PSI Wellhead Manifold Valve
Hydraulic Plate Valve Product Introduction
Flat gate valves for critical high pressure (5,000 psi to 15,000 psi) service applications on wellhead devices, trees and pipe manifolers are available in open and dark stem types. Reliable performance. Forging body/cover; Low operating torque; Metal to metal high pressure body/cover seal; Metal-to-metal valve seat/body (corrugated spring preload design), valve seat/ram seal; Non-rubber material; The metal-to-metal back seat seal can be tightened no matter where the ram is positioned; There is a fitting in the bonnet above the back seat; Ram guide bar seals valve body lubricant and protects the ram surface; Manual and drive operations.
Hydraulic Plate Valve Basic parameter
Nominal size: 1-13/16"~7-1/16"
Rated pressure: 2000PSI to 20000PSI
Temperature: -46 °C ~ +121°C(LU class)
Material level: AA, BB, CC, DD, EE, FF, HH
Specification level: PSL1-4
Performance level: PR1-2
Implementation standards: API SPEC 6A & NACE MR 0175
Operation mode: manual, pneumatic, electric and hydraulic
