Ceramic Liner FC-1600 Mud Pump Spare Parts Size 5-1/2" API 7K

Ceramic Liner FC-1600 Mud Pump Spare Parts Size 5-1/2" API 7K
Ceramic Liner FC-1600 Mud Pump Spare Parts Size 5-1/2" API 7K Ceramic Liner FC-1600 Mud Pump Spare Parts Size 5-1/2" API 7K

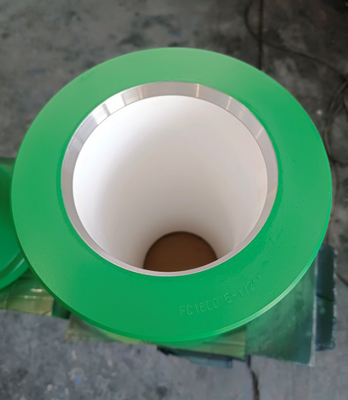

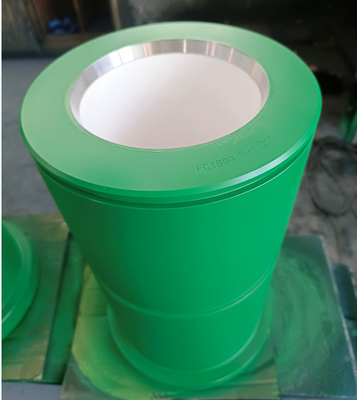

Large Image :  Ceramic Liner FC-1600 Mud Pump Spare Parts Size 5-1/2" API 7K

Product Details:
Place of Origin: China
Brand Name: FORUS
Certification: API 7K
Model Number: FC-1600
Payment & Shipping Terms:
Minimum Order Quantity: 8 Sets
Packaging Details: Wooden Box
Delivery Time: 25 days
Payment Terms: L/C, T/T, Western Union, L/C, T/T, Western Union
Supply Ability: 500 Sets Per Month

Ceramic Liner FC-1600 Mud Pump Spare Parts Size 5-1/2" API 7K

Description
Product Name: Mud Pump Ceramic Liner Model: FC-1600
Part Number: 07499550 Industry: Oilfield Drilling
Size: 5-1/2" Work Life: 4000 Hours
High Light:

API 7K Ceramic Liner

,

Mud Pump Ceramic Liner 5-1/2"

,

Oilfield Drilling Ceramic Mud Pump Liner

Ceramic Liner FC-1600 Mud Pump Spare Parts Size 5-1/2" API 7K​



Product Description



1. Our mud pump liner is manufactured in strict accordance with API-7K standard, and has passed ISO9001-2000 international quality system



certification.


2. Our mud pump liner has reached the quality requirements of OEM products, replacing OEM products in the same industry.


3. Through continuous development, we sincerely welcome new and old customers to visit and negotiate business with the best products and



high-quality services.


Advantage:


The service life of the bimetal liner is about 800 hours, which is 2-3 times of the service life in the general harsh environment.




The service life of the ceramic liner is about 4000 hours.



Material Technology Parameter



1.Ceramic Material Inspection Table

Item
Magenta detection OK
Rockwell hardness (HRA) ≥ 90.5
Bending strength (MPa) ≥ 800
Fracture toughness (MPa.M1/2) ≥8.0
Volume density (g/cm3) ≥ 6
Toughness of working surface ≤ 0.20μm when temp ≤ 350℃
Wear resistance(laboratory test) 50 times more than that of high chromium cast iron
Composition (%)

AL2O3 0.03; MgO 0.04

ZrO2 99.9(including 5.4% Y2O3)

Na2O 0.01; Fe2O3 0.01; SiO2 0.01

Conclusion Qualified







2. Metal Material Inspection Table

Item
Brinell hardness (HB) 180--210
Tensile strength (MPa) 620--660
Composition (%) C0.44 Si0.18 S0.005 P0.020 Mn0.40 Cr0.12 Ni0.02 Cu0.05
Conclusion

Qualified




















Ceramic Liner FC-1600 Mud Pump Spare Parts Size 5-1/2" API 7K 0Supply Mud Pump Brand



BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
Wirth:TPK-1000, TPK-1300, TPK-1600, TPK-2000, TPK-2200
ITECO:T-500,T-800,T-1000,T-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
Drillmec: 9T1000, 12T1600, 7TS600, 10D2C, 8D1S
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
