Product Details:
|
| Product Name: | Main Drum Combined Pressure Regulating Valve | Scope: | Workover Rig Spare Part |
|---|---|---|---|
| Application: | Oilfield Equipment | Port: | Shanghai |
| High Light: | Workover Rig Pressure Regulating Valve,XJ750 Combined Pressure Regulating Valve,Workover Rig Combination Valve |
||

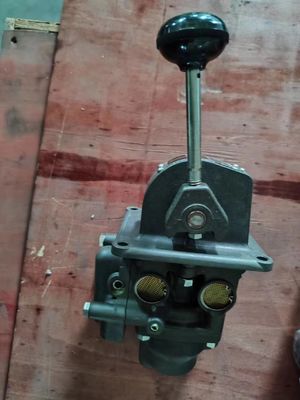

XJ750 Workover Rig Spare Part Main Drum Combined Pressure Regulating Valve
Workover Rig Product Overview
Implement API Spec Q1, 4F, 7K, 8C, RP500 and other relevant technical standards.
The workover rig is mainly composed of the following parts: power system, transmission system, lifting system, rotation system, control system, derrick and drill floor (base), auxiliary equipment, etc.
The power system is mainly composed of chassis, engine, transmission, etc., the transmission system is mainly composed of transmission box, transmission shaft, chain, etc., the lifting system is mainly composed of winch, steel wire rope, crane, car hook, etc., the rotary system is mainly composed of faucets, turntables, etc.
Product characteristics
* The power, transmission, control and lifting systems of the main engine of the workover rig as well as the crane and derrick are centrally installed on the self-propelled chassis for the oilfield, which is easy to install and fast to move.
* Caterpillar diesel engine and Allison hydraulic transmission box, reasonable matching, high transmission efficiency, high reliability.
* drilling and repairing dual use;
* The winch adopts double drum winch, the main brake adopts belt brake or hydraulic disc brake, and the auxiliary brake adopts pneumatic water-cooled disc brake or water brake.
* The derrick is a forward-opening, double-section set forward-tilting mast mast, hydraulic lifting and retractable.
The common product models of workover rig mainly include: XJ250, XJ350, XJ450, XJ550, XJ650, XJ750, etc.
XJ750 Workover Rig Parameter
| Type/Parameter | SX5250TXJ | XJ350 | XJ450 | XJ550 | XJ650 | XJ750 | XJ850 |
| Maximum Static Hook Load | 675KN | 900KN | 1125KN | 1350KN | 1580KN | 1800KN | 2250KN |
| Rated Hook Load | 400KN | 600KN | 800KN | 1000KN | 1200KN | 1600KN | 1800KN |
| Hook Lift Speed | 0.11-1.15m/s | 0.11-1.15m/s | 0.11-1.15m/s | 0.11-1.15m/s | 0.11-1.15m/s | 0.11-1.15m/s | 0.11-1.15m/s |
| Travelling System | 3×4 | 4×5 | 4×5 | 4×5 | 4×5 | 5×6 | 5×6 |
| Head Gear Height m | 18,21,23(Double section, hydraulic, telescopic) | 29(Double section, hydraulic, telescopic) | 31(Double section, hydraulic, telescopic) | 33(Double section, hydraulic, telescopic) | 35(Double section, hydraulic, telescopic) | 36(Double section, hydraulic, telescopic) | 38(Double section, hydraulic, telescopic) |
| Drive Form | 6×4 | 8×4 | 8×4 | 10×8 | 12×8 | 14×8 or 12×8 | 14×10 |
| Rtravel Speed | 0-45km/h | 0-45km/h | 0-45km/h | 0-45km/h | 0-45km/h | 0-45km/h | 0-45km/h |
| Minimum Ground Clearance (Full Load) | 250mm | 300mm | 300mm | 300mm | 300mm | 270mm | 270mm |
| Minimum Turning Radius | 9.4m | 15m | 17m | 17.5m | 19m | 21m | 21m |
| Total Vehicle Mass | 25000kg | 30000kg | 41000kg | 55000kg | 63000kg | 68000kg | 70000kg |
| Installed Power | 175hp | 350hp | 392hp | 429hp | 600hp | 2×403hp | 2×447hp |
| Rig Floor Height | / | / | / | / | 4.5m | 5m | 5m |
| Rig Table | / | / | / | / | 5×6m | 5.8×7m | 5.8×7m |
| Dimension(Length×Width×Height)mm | 14850×2495×4000 | 17500×2800×4350 | 18500×3048×4400 | 19000×3048×4400 | 19000×3050×4400 | 22300×3000×4450 | 22300×3050×4450 |
| Applicable Workover Depth | ≤3200m | ≤4000m | 5500m | 6000m | 7000m | 8000m | 9000m |
