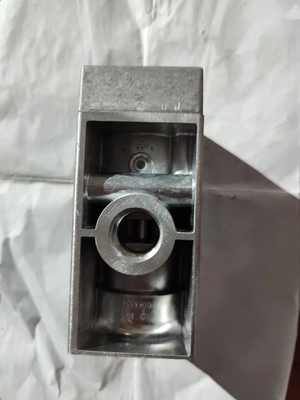

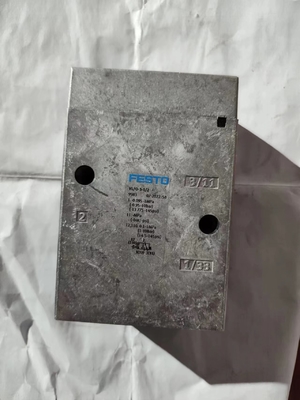

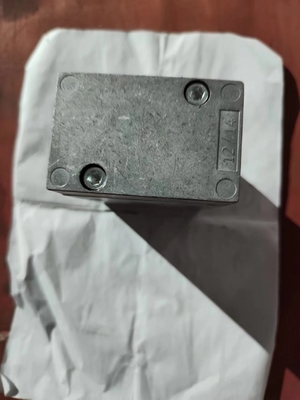

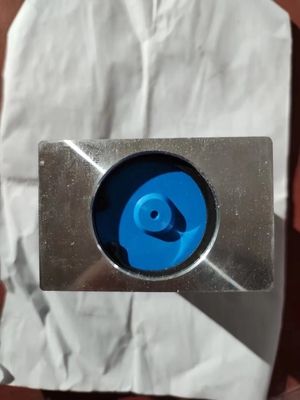

ISO XJ750 Workover Rig Parts Air Relay Valve XJ-120 VL/O-3-1/2

ISO XJ750 Workover Rig Parts Air Relay Valve XJ-120 VL/O-3-1/2
ISO XJ750 Workover Rig Parts Air Relay Valve XJ-120 VL/O-3-1/2 ISO XJ750 Workover Rig Parts Air Relay Valve XJ-120 VL/O-3-1/2 ISO XJ750 Workover Rig Parts Air Relay Valve XJ-120 VL/O-3-1/2 ISO XJ750 Workover Rig Parts Air Relay Valve XJ-120 VL/O-3-1/2

Large Image :  ISO XJ750 Workover Rig Parts Air Relay Valve XJ-120 VL/O-3-1/2

Product Details:
Place of Origin: China
Brand Name: FESTO
Certification: ISO
Model Number: XJ-120 VL/O-3-1/2
Payment & Shipping Terms:
Minimum Order Quantity: 5sets
Packaging Details: Wooden Box
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 pieces per week

ISO XJ750 Workover Rig Parts Air Relay Valve XJ-120 VL/O-3-1/2

Description
Product Name: Air Relay Valve Standard: ISO
Part No.: XJ-120 VL/O-3-1/2 Application: XJ750 Workover Rig
High Light:

XJ-120 Air Relay Valve

,

Workover Rig Air Relay Valve

,

ISO Workover Rig Parts

XJ750 Workover Rig Spare Part Air Relay Valve XJ-120 VL/O-3-1/2



Workover Rig Product Overview
Implement API Spec Q1, 4F, 7K, 8C, RP500 and other relevant technical standards.
The workover rig is mainly composed of the following parts: power system, transmission system, lifting system, rotation system, control system, derrick and drill floor (base), auxiliary equipment, etc.
The power system is mainly composed of chassis, engine, transmission, etc., the transmission system is mainly composed of transmission box, transmission shaft, chain, etc., the lifting system is mainly composed of winch, steel wire rope, crane, car hook, etc., the rotary system is mainly composed of faucets, turntables, etc.


Product characteristics


* The power, transmission, control and lifting systems of the main engine of the workover rig as well as the crane and derrick are centrally installed on the self-propelled chassis for the oilfield, which is easy to install and fast to move.
* Caterpillar diesel engine and Allison hydraulic transmission box, reasonable matching, high transmission efficiency, high reliability.
* drilling and repairing dual use;
* The winch adopts double drum winch, the main brake adopts belt brake or hydraulic disc brake, and the auxiliary brake adopts pneumatic water-cooled disc brake or water brake.
* The derrick is a forward-opening, double-section set forward-tilting mast mast, hydraulic lifting and retractable.
The common product models of workover rig mainly include: XJ250, XJ350, XJ450, XJ550, XJ650, XJ750, etc.



XJ750 Workover Rig Parameter

Type/Parameter SX5250TXJ XJ350 XJ450 XJ550 XJ650 XJ750 XJ850
Maximum Static Hook Load 675KN 900KN 1125KN 1350KN 1580KN 1800KN 2250KN
Rated Hook Load 400KN 600KN 800KN 1000KN 1200KN 1600KN 1800KN
Hook Lift Speed 0.11-1.15m/s 0.11-1.15m/s 0.11-1.15m/s 0.11-1.15m/s 0.11-1.15m/s 0.11-1.15m/s 0.11-1.15m/s
Travelling System 3×4 4×5 4×5 4×5 4×5 5×6 5×6
Head Gear Height m 18,21,23(Double section, hydraulic, telescopic) 29(Double section, hydraulic, telescopic) 31(Double section, hydraulic, telescopic) 33(Double section, hydraulic, telescopic) 35(Double section, hydraulic, telescopic) 36(Double section, hydraulic, telescopic) 38(Double section, hydraulic, telescopic)
Drive Form 6×4 8×4 8×4 10×8 12×8 14×8 or 12×8 14×10
Rtravel Speed 0-45km/h 0-45km/h 0-45km/h 0-45km/h 0-45km/h 0-45km/h 0-45km/h
Minimum Ground Clearance (Full Load) 250mm 300mm 300mm 300mm 300mm 270mm 270mm
Minimum Turning Radius 9.4m 15m 17m 17.5m 19m 21m 21m
Total Vehicle Mass 25000kg 30000kg 41000kg 55000kg 63000kg 68000kg 70000kg
Installed Power 175hp 350hp 392hp 429hp 600hp 2×403hp 2×447hp
Rig Floor Height / / / / 4.5m 5m 5m
Rig Table / / / / 5×6m 5.8×7m 5.8×7m
Dimension(Length×Width×Height)mm 14850×2495×4000 17500×2800×4350 18500×3048×4400 19000×3048×4400 19000×3050×4400 22300×3000×4450 22300×3050×4450
Applicable Workover Depth ≤3200m ≤4000m 5500m 6000m 7000m 8000m 9000m
