Product Details:
|
| Product Name: | Bimetal Liner | Model: | F-1600 |
|---|---|---|---|
| Advantage: | High Performance | Condition: | Brand New |
| Industry: | Oilfield Drilling | Serve Life: | 800-1000 Hours |
| High Light: | F-1600 Mud Pump Liner,180mm Mud Pump Liner,High Performance Bimetal liner |
||

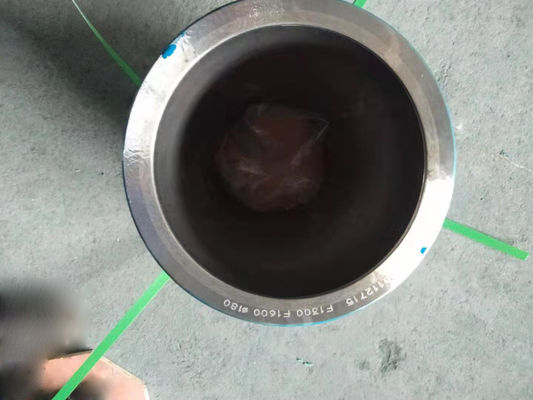

Mud Pump Parts Bi-Metal Liner Φ180mm For BOMCO F-1600 Mud Pump
Description of Bimetal Liner
The inner and outer layers are tightly bound together.The outer 45# steel is wear-resistant and the inner high chromium cast iron is wear-resistant
and corrosion-resistant. The hardness after heat treatment reaches 62 Rockwell C grade.
Our company's production of bimetal cylinder liner strictly control the size within the tolerance range, to ensure easy installation, high inner sleeve
finish, wear resistance, corrosion resistance, long service life, suitable for all kinds of harsh working environment.
Coat :45# forging, tensile strength σ B >610MPa, yield strength σ S >450MPa, elongation > 17%, hardness HB180-200.
Inner sleeve: high chromium cast iron (centrifugal casting), anneal hardness HRC≤40, quenching hardness HRC 60-67.
Chemical composition: C 2.8% - 3.1%, 26% 28% Cr, Si 0.6% 0.9%, Mn 0.5% 1% Mo 0.5%-0.8%, S, P <0.05%;
Applicable industries
Petroleum industry, chemical industry etc., It can be processed with drawings and samples.
Mud Pump List Of Mud Pump Parts For F-1600
| Item | Product Description | Mud Pump Model | Part No. |
| 1 | Hydraulic cylinder assembly | F-1300/F-1600 | AH130102050100 |
| 2 | Cylinder head flange | F-1300/F-1600 | AH1301010502 |
| 3 | Cylinder head | F-1300/F-1600 | AH1301010503 |
| 4 | Plug board assembly | F-1300/F-1600 | AH130101050400 |
| 5 | Valve rod guides(lower) | F-1300/F-1600 | AH130101050500 |
| 6 | Cylinder head plug | F-1300/F-1600 | AH130101050600 |
| 7 | Positioning plate | F-1300/F-1600 | AH1301010507 |
| 8 | Cylinder head gasket | F-1300/F-1600 | AH1301010508 |
| 9 | Discharge manifold | F-1300/F-1600 | AH1301010509 |
| 10 | Valve spring | F-1300/F-1600 | AH00000101 |
| 11 | Valve assembly API 7 through-hole | F-1300/F-1600 | AH0000020300 |
| 12 | Valve cover sealing ring | F-1300/F-1600 | AH1301010510 |
| 13 | Valve cover | F-1300/F-1600 | AH1301020502 |
| 14 | Cylinder liner seal | F-1300/F-1600 | AH1301010512 |
| 15 | Wearing plate | F-1300/F-1600 | AH1301020503 |
| 16 | Cylinder liner flange | F-1300/F-1600 | AH1301010514 |
| 17 | Cylinder liner gland | F-1300/F-1600 | AH130101051500 |
| 18 | Piston rod | F-1300/F-1600 | AH1301020504 |
| 19 | Adapter NPT3/8 | F-1300/F-1600 | AH130102050500 |
| 20 | O-ring φ200×7 | F-1300/F-1600 | 5.30301E+17 |
| 21 | Cylinder liner lock ring | F-1300/F-1600 | AH1301010518 |
| 22 | Bi-metal cylinder liner | F-1300/F-1600 | AH130102051200 |
| 23 | Clamp assembly | F-1300/F-1600 | AH130102050600 |
| 24 | Elbow NPT3/8-M22X1.5 | F-1300/F-1600 | AH1301020507 |
| 25 | Cylinder end cover | F-1300/F-1600 | AH1301010520 |
Supply Mud Pump Parts Brand
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
