170mm Mud Pump Liner

170mm Mud Pump Liner
170mm Mud Pump Liner 170mm Mud Pump Liner 170mm Mud Pump Liner 170mm Mud Pump Liner

Large Image :  170mm Mud Pump Liner

Product Details:
Place of Origin: China
Brand Name: BOMCO
Certification: API 7K
Model Number: F-1600
Payment & Shipping Terms:
Minimum Order Quantity: 10 Sets
Packaging Details: Wooden Box/Customized
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union, L/C, T/T, Western Union
Supply Ability: 500 Sets Per Month

170mm Mud Pump Liner

Product Name: Bimetal Liner Model: F-1600
Advantage: High Performance Condition: Brand New
Industry: Oilfield Drilling Serve Life: 800-1000 Hours
High Light:

170mm Mud Pump Liner


F-1600 Mud Pump Liner


API 7K Bimetal liner

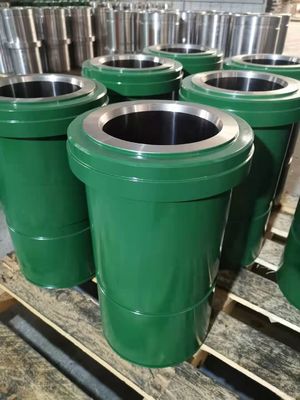

Mud Pump Parts Bi-Metal Liner Used For BOMCO F-1600 Mud Pump


Description of Bimetal Liner


The inner and outer layers are tightly bound together.The outer 45# steel is wear-resistant and the inner high chromium cast iron is wear-resistant


and corrosion-resistant. The hardness after heat treatment reaches 62 Rockwell C grade.

Our company's production of bimetal cylinder liner strictly control the size within the tolerance range, to ensure easy installation, high inner sleeve


finish, wear resistance, corrosion resistance, long service life, suitable for all kinds of harsh working environment.

Coat :45# forging, tensile strength σ B >610MPa, yield strength σ S >450MPa, elongation > 17%, hardness HB180-200.

Inner sleeve: high chromium cast iron (centrifugal casting), anneal hardness HRC≤40, quenching hardness HRC 60-67.

Chemical composition: C 2.8% - 3.1%, 26% 28% Cr, Si 0.6% 0.9%, Mn 0.5% 1% Mo 0.5%-0.8%, S, P <0.05%;



Applicable industries


Petroleum industry, chemical industry, food processing industry, etc., It can be processed with drawings and samples.


Mud Pump List Of Mud Pump Parts For  F-1600


Item Product Description Mud Pump Model Part No.
1 Hydraulic cylinder assembly F-1300/F-1600 AH36002-05.01.00
2 Cylinder head flange F-1300/F-1600 AH36001-05.02
3 Cylinder head F-1300/F-1600 AH36001-05.03
4 Plug board assembly F-1300/F-1600 AH36001-05A.04.00
5 Valve rod guides(lower) F-1300/F-1600 AH36001-05A.05.00
6 Cylinder head plug F-1300/F-1600 AH36001-05A.06.00
7 Positioning plate F-1300/F-1600 AH36001-05A.07
8 Cylinder head gasket F-1300/F-1600 AH36001-05.08
9 Discharge manifold F-1300/F-1600 AH36001-05.09
10 Valve spring F-1300/F-1600 AH33001-05.16A
11 Valve assembly API 7 through-hole F-1300/F-1600 AH36001-05.12A.00
12 Valve cover sealing ring F-1300/F-1600 AH36001-05.13
13 Valve cover F-1300/F-1600 AH36002-05.02
14 Cylinder liner seal F-1300/F-1600 AH36001-05.15
15 Wearing plate F-1300/F-1600 AH36002-05.03
16 Cylinder liner flange F-1300/F-1600 AH36001-05.17
17 Cylinder liner gland F-1300/F-1600 AH36001-05.18.00
18 Piston rod F-1300/F-1600 AH36002-05.05
19 Adapter NPT3/8 F-1300/F-1600 AH36002-05.04.00
20 O-ring φ200×7 F-1300/F-1600 5.30301E+17
21 Cylinder liner lock ring F-1300/F-1600 AH36001-05.22
22 Bi-metal cylinder liner F-1300/F-1600 AH130102051200
23 Clamp assembly F-1300/F-1600 AH36002-05.06.00
24 Elbow NPT3/8-M22X1.5 F-1300/F-1600 AH36002-05.08
25 Cylinder end cover F-1300/F-1600 AH36001-05.27


170mm Mud Pump Liner 0
Company Introduction


FORUS company is engaged exporting oil drilling machine and equipment. Our goal is to meet customers’ different requirements, supply high


quality products with best price.


We has a professional team to provide efficiently service, quickly action. Integrity is the cornerstone of our development. Our equipments have


exported many countries, including Kuwait, UAE., Egypt, Indonesia, Russia, USA, Kazakhstan etc., and we are widely praised by our clients.



Supply Mud  Pump Parts Brand



BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL






LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800




Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT


WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16


NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700


EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
