4-1/2" To 20" Drilling Casing Pipe

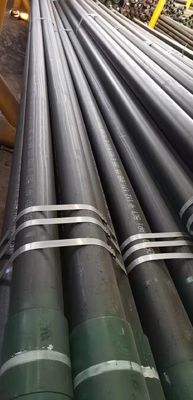

Large Image : 4-1/2" To 20" Drilling Casing Pipe

Product Details:

Place of Origin:	China
Brand Name:	FORUS
Certification:	API 5CT
Model Number:	PLB

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Packaging Details:	Bundling
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union

Contact Now

4-1/2" To 20" Drilling Casing Pipe

Description

Product Name:	Casing Pipe	OD:	4-1/2" To 20"
Grade:	H40, J55, K55, L80, L80-13Cr, L80-9Cr, N80-1, N80Q, P110	Industry:	Oil Drilling
Thread Type:	STC, LTC, BTC, Premium Connection (, NEW , PH-6)
High Light:	20" Drilling Casing Pipe , 4-1/2" Drilling Casing Pipe , API oil casing pipe

Drilling Casing pipe API SPEC 5CT OD 4-1/2" To 20" Length R1 R2 R3

API 5CT Casing Pipe

Grade: H40, J55, K55, L80, L80-13Cr, L80-9Cr, N80-1, N80Q, P110

O.D: 4 1/2"-20"

Connection: STC, LTC, BTC, Premium Connection (, NEW , PH-6)

Pruduct Parameter

Labels ^a		OD mm	Nominal Linear Mass ^b,c T&C kg/m	WT t mm	Type of end-finish ^d
Labels ^a					H40	J55 K55	M65	L80 R95	N80 Type 1, Q	C90 T95	P110	Q125
1	2				H40	J55 K55	M65	L80 R95	N80 Type 1, Q	C90 T95	P110	Q125
1	2	3	4	5	6	7	8	9	10	11	12	13
4-1/2 4-1/2 4-1/2 4-1/2 4-1/2	9.50 10.50 11.60 13.50 15.10	114.30 114.30 114.30 114.30 114.30	14.14 15.63 17.26 20.09 22.47	5.21 5.69 6.35 7.37 8.56	PS - - - -	PS PSB PSLB - -	PS PSB PLB PLB -	- - PLB PLB -	- - PLB PLB -	- - PLB PLB -	- - PLB PLB PLB	- - - - PLB
5 5 5 5 5 5 5	11.50 13.00 15.00 18.00 21.40 23.20 24.10	127.00 127.00 127.00 127.00 127.00 127.00 127.00	17.11 19.35 22.32 26.79 31.85 34.53 35.86	5.59 6.43 7.52 9.19 11.10 12.14 12.70	- - - - - - -	PS PSLB PSLBE - - - -	PS PSLB PLB PLB PLB - -	- - PLB PLB PLB PLB PLB	- - PLB PLB PLB PLB PLB	- - PLB PLB PLB PLB PLB	- - PLB PLB PLB PLB PLB	- - - PLB PLB PLB PLB
5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2	14.00 15.50 17.00 20.00 23.00 26.80 29.70 32.60 35.30 38.00 40.50 43.10	139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70	20.83 23.07 25.30 29.76 34.23 39.88 44.20 48.51 52.53 56.55 60.27 61.14	6.20 6.98 7.72 9.17 10.54 12.70 14.27 15.88 17.45 19.05 20.62 22.22	PS - - - - - - - - - - -	PS PSLBE PSLBE - - - - - - - - -	PS PSLB PLB PLB PLB - - - - - - -	- - PLBE PLBE PLBE - - - - - - -	- - PLBE PLBE PLBE - - - - - - -	- - PLBE PLBE PLBE P P P P P P P	- - PLBE PLBE PLBE - - - - - - -	- - - - PLBE - - - - - - -
6-5/8 6-5/8 6-5/8 6-5/8	20.00 24.00 28.00 32.00	168.28 168.28 168.28 168.28	29.76 35.72 41.67 47.62	7.32 8.94 10.59 12.06	PS - - -	PSLB PSLBE - -	PSLB PLB PLB -	- PLBE PLBE PLBE	- PLBE PLBE PLBE	- PLBE PLBE PLBE	- PLBE PLBE PLBE	- - - PLBE
7 7 7 7 7 7 7	17.00 20.00 23.00 26.00 29.00 32.00 35.00	177.80 177.80 177.80 177.80 177.80 177.80 177.80	25.30 29.76 34.23 38.69 43.16 47.62 52.09	5.87 6.91 8.05 9.19 10.36 11.51 12.65	PS PS - - - - -	- PS PSLBE PSLBE - - -	- PS PLB PLB PLB PLB -	- - PLB PLB PLB PLB PLB	- - PLB PLB PLB PLB PLB	- - PLB PLB PLB PLB PLB	- - - PLB PLB PLB PLBE	- - - - - - PLB
7 7 7 7 7 7	38.00 42.70 46.40 50.10 53.60 57.10	177.80 177.80 177.80 177.80 177.80 177.80	56.55 63.54 69.05 74.56 79.77 84.97	13.72 15.88 17.45 19.05 20.62 22.22	- - - - - -	- - - - - -	- - - - - -	PLB - - - - -	PLB - - - - -	PLB P P P P P	PLB - - - - -	PLB - - - - -
7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8	24.00 26.40 29.70 33.70 39.00 42.80 45.30 47.10 51.20 55.30	193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68	35.72 39.29 44.20 50.15 58.04 63.69 67.41 70.09 76.19 82.30	7.62 8.33 9.52 10.92 12.70 14.27 15.11 15.88 17.45 19.05	PS - - - - - - - - -	- PSLB - - - - - - - -	- PSLB PLB PLB - - - - - -	- PLB PLB PLB PLB PLB PLB PLB - -	- PLB PLB PLB PLB PLB PLB PLB - -	- PLB PLB PLB PLB PLB PLB PLB P P	- - PLB PLB PLB PLB PLB PLB - -	- - - - PLB PLB PLB PLB - -
7-3/4	46.10	196.85	68.60	15.11	-	-	-	P	P	P	P	P
8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8	24.00 28.00 32.00 36.00 40.00 44.00 49.00	219.08 219.08 219.08 219.08 219.08 219.08 219.08	35.72 41.67 47.62 53.57 59.53 65.48 72.92	6.71 7.72 8.94 10.16 11.43 12.70 14.15	- PS PS - - - -	PS PS - PSLB PSLB PLB -	PS PS PSLB PSLB PLB - -	- - - PLB PLB PLB PLB	- - - PLB PLB PLB PLBE	- - - PLBE PLBE PLBE PLBE	- - - PLB PLB PLB	- - - - - PLB
9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8	32.30 36.00 40.00 43.50 47.00 53.50 58.40 59.40 64.90 70.30 75.60	244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48	48.07 53.57 59.53 64.73 69.94 79.62 86.91 88.40 96.58 104.62 112.50	7.92 8.94 10.03 11.05 11.99 13.84 15.11 15.47 17.07 18.64 20.24	PS PS - - - - - - - - -	- PSLB PSLB - - - - -	- PSLB PSLB PLB PLB - - - - -	- - PLB PLB PLB PLB PLB - - - -	- - PLB PLB PLB PLB PLB - - -	- - PLB PLB PLB PLB PLB P P P P	- - - PLB PLB PLB PLB - - - -	- - - - PLB PLB PLB - - - -
10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4	32.75 40.50 45.50 51.00 55.50 60.70 65.70 73.20 79.20 85.30	273.05 273.05 273.05 273.05 273.05 273.05 273.05 273.05 273.05 273.05	48.74 60.27 67.71 75.90 82.59 90.33 97.77 108.93 117.86 126.94	7.09 8.89 10.16 11.43 12.57 13.84 15.11 17.07 18.64 20.24	PS PS - - - - - - - -	- PSB PSB PSB - - - - - -	- PSB PSB PSB PSB - - - - -	- - - PSB PSB - - - - -	- - - PSB PSB - - - - -	- - - PSB PSB PSB PSB P P P	- - - PSB PSB PSB PSB - - -	- - - - - PSB PSB - - -
11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4	42.00 47.00 54.00 60.00 65.00 71.00	298.45 298.45 298.45 298.45 298.45 298.45	62.50 69.94 80.36 89.29 96.73 105.66	8.46 9.53 11.05 12.42 13.56 14.78	PS - - - - -	- PSB PSB PSB - -	- PSB PSB PSB - -	- - - PSB P P	- - - PSB P P	- - - PSB P P	- - - PSB P P	- - - PSB P P
13-3/8 13-3/8 13-3/8 13-3/8 13-3/8	48.00 54.50 61.00 68.00 72.00	339.72 339.72 339.72 339.72 339.72	71.43 81.10 90.78 101.19 107.15	8.38 9.65 10.92 12.19 13.06	PS - - - -	- PSB PSB PSB -	- PSB PSB PSB -	- - - PSB PSB	- - - PSB PSB	- - - PSB PSB	- - - PSB PSB	- - - - PSB
16 16 16 16	65.00 75.00 84.00 109.00	406.40 406.40 406.40 406.40	96.73 111.61 125.01 162.21	9.53 11.13 12.57 16.66	PS - - -	- PSB PSB P	- PSB PSB -	- - - P	- - - P	- - - -	- - - P	- - - P
18-5/8	87.50	473.08	130.21	11.05	PS	PSB	PSB	-	-	-	-	-
20 20 20	94.00 106.50 133.00	508.00 508.00 508.00	139.89 158.49 197.93	11.13 12.70 16.13	PSL - -	PSLB PSLB PSLB	PSLB PSLB -	- - -	- - -	- - -	- - -	- - -
P=Plain end; S=short round thread; L=Long round thread; B--Buttress thread;
a: Labels are for information and assistance in ordering. b: Nominal linear masses (col. 4) are shown for information only. c: The densities of martensitic chromium steels (L80 Types 9Cr and 13Cr) are different from carbon steels. The masses shown are therefore not accurate for martensitic chromium steels. A mass correction factor of 0.989 may be used. d: Buttress casing i s available with regualr, special clearance coupings or special clearance couplings with special bevel.

FORUS company is engaged exporting oil drilling machine and equipment. Our goal is to meet customers’ different requirements, supply high

quality products with best price.

We has a professional team to provide efficiently service, quickly action. Integrity is the cornerstone of our development. Our equipments have

exported many countries, including Kuwait, UAE., Egypt, Indonesia, Russia, USA, Kazakhstan etc., and we are widely praised by our clients.
